# Superconducting surface trap chips for microwave-driven trapped ions

*EPJ Quantum Technology*
**volume 11**, Article number: 56 (2024)

## Abstract

Microwave-driven trapped ion logic gates offer a promising avenue for advancing beyond laser-based logic operations. In future microwave-based operations, however, the joule heat produced by large microwave currents flowing through narrow microwave electrodes would potentially hinder improvements in gate speed and fidelity. Moreover, scalability, particularly in cryogenic trapped ion systems, is impeded by the excessive joule heat. To address these challenges, we present a novel approach: superconducting surface trap chips that integrate high-*Q* microwave resonators with large current capacities. Utilizing sub-ampere microwave currents in superconducting Nb resonators, we generate substantial magnetic field gradients with significantly reduced losses compared to conventional metal chips. By harnessing the high *Q* factors of superconducting resonators, we propose a power-efficient two-qubit gate scheme capable of achieving a sub-milliwatt external microwave input power at a gate Rabi frequency of 1 kHz.

## 1 Introduction

Trapped ion systems are among the most promising platforms for quantum information processing [1–3]. Spin qubits realized in trapped ions enable high-fidelity single- and two-qubit gate operations, as well as long coherence times [4–7]. Universal control of those qubits has traditionally been achieved through the utilization of optical Raman transitions with carefully controlled multiple laser beams. Alternatively, laser-free entangling gates have been recently demonstrated using DC [8–10] and AC (RF and microwave) magnetic field gradients [11–17]. Notably, microwave-based approaches have recently achieved single- and two-qubit gates with significantly low error rates of approximately 10^{−6} [18, 19] and ≲10^{−3} [13, 15–17], respectively. These error rates are comparable to or even lower than those of laser-based approaches, while the minimum durations of two-qubit gates are slightly longer, around 150 *μ*s [16, 17]. The direct access to the spin transitions enabled by magnetic field gradients provides high-fidelity operations that are not limited by spontaneous optical Raman emission. Moreover, utilizing mature microwave off-the-shelf components and on-chip microwave circuitry potentially enhances scalability due to their compact sizes and superior controllability of frequencies, phases, and amplitudes.

A challenge encountered in microwave-based entangling operations is the Joule loss of sub-ampere AC current flowing in narrow on-chip microwave waveguides. Considering standard gold waveguides with a width of 10 *μ*m, a thickness of 5 *μ*m, and a resistivity of 1 nΩ m at a cryogenic temperature [20], an AC current of 1 A at 1 GHz generates a power dissipation of ∼30 mW per 1 mm length of a single trap segment. This substantial amount of Joule heat can induce changes in the local dielectric environment due to temperature rise or, in the worst case, cause irreversible damage to the trap chip [21]. These effects would limit gate speed and fidelity. Furthermore, especially for cryogenic operations to suppress anomalous heating [22, 23], the excessive Joule heat would constrain the number of entangling gates that can be executed in parallel due to the limited cooling power.

To address these issues, we develop superconducting surface trap chips that incorporate high-*Q* and large-current-capable superconducting microwave resonators. The low-loss property of superconductivity minimizes on-chip Joule heating, while its large current capacity enables the generation of large magnetic field gradients. In terms of the current capacity, the microwave critical currents of superconductors are governed by the theoretical limit known as the superheating field \(H_{\mathrm{sh}}\), which represents the maximum magnetic field that can be sustained on the surface without triggering a transition from the Meissner state to the vortex state. The superheating field exceeds the lower critical field \(H_{c1}\) by retaining the Meissner state as a metastable state. Recent advancements in superconducting materials, particularly in Nb, have achieved critical fields close to the superheating field, approximately 200 mT [24, 25]. This achievement has enabled the development of superconducting radio frequency cavities with enhanced high-current capacity and significantly increased *Q* factors of ∼10^{10} [26].

Motivated by the high-*Q* and large-current capacity of bulk Nb cavities, we explore the potential of Nb films to achieve large microwave currents and high-*Q* factors when integrated into surface trap chips. The structure of this paper is as follows. In Sect. 2, we embark on an investigation into the current-carrying capacity and *Q* factors of superconducting surface trap chips. We begin by examining a fundamental structure, coplanar waveguide resonators, as a precursor to understanding the intricate dependencies of more complex chip designs. We fabricate high-*Q* superconducting coplanar resonators and conduct a detailed examination of the underlying physics that limits the maximum current. Subsequently, we extend our investigation by fabricating a superconducting surface trap chip, which imposes additional geometric constraints. This step allows us to assess the feasibility of accommodating a large current, hence a large magnetic field gradient within the context of an actual surface trap geometry. In Sect. 3, instead of using a typical single-sided surface trap chip, we propose to use a 3D-integrated superconducting trap geometry to enhance the microwave-field gradient. We fabricate such a 3D trap chip using a flip-chip assembly technique and characterize the maximum currents and the *Q* factors at various temperatures. Moreover, we explore the response of the *Q* factors to continuous and pulsed light illumination in order to emulate the conditions encountered during laser cooling and readout operations. In Sect. 4, we discuss a power-efficient two-qubit gate scheme that benefits from the high *Q* factor of superconducting microwave resonators. Finally, in Sect. 5, we summarize the issues to be addressed for further improvements to generate an even larger magnetic field gradient.

## 2 Microwave characterization for superconducting surface trap chips

### 2.1 Superconducting coplanar waveguides

First, we fabricated superconducting coplanar waveguide resonators to investigate how large microwave currents can flow in narrow superconducting electrodes. We sputtered a 1.2 *μ*m-thick Nb film on a high resistive Silicon substrate (∼ 20 kΩ cm) immediately after removing the native oxide layer with diluted hydrogen fluoride solvent. Subsequently, we patterned the circuits by reactive ion etching with a photoresist mask. The inset of Fig. 1(a) displays a fabricated coplanar waveguide resonator with a resonance frequency of 6.116 GHz, featuring a width and gap of 30 *μ*m and 15 *μ*m, respectively. We cooled the sample down to 2 K using a Gifford-McMahon cryocooler.

We obtained the resonance spectrum of the resonator by measuring microwave transmission with a vector network analyzer through a feedline capacitively coupled to the resonator. Figure 1(a) shows the resonance spectra measured with various input microwave powers. As the input power increases, the resonance peak experiences a slight shift towards shorter frequencies within the linewidth. This small resonance shift is indicative of nonlinear kinetic inductance effect [27]. In addition to the shift, the spectra display a sudden reduction in resonance depth when the input power surpasses a critical value, causing the Lorentzian lineshape to transition into a flat-bottom shape. This phenomenon is attributed to power-dependent nonlinear dissipation described in [27], where the power-dependent *Q* factor is represented by a power-law expression: \(Q_{\mathrm{nl}} = Q_{\mathrm{ext}} (P_{\mathrm{c}}/P_{\mathrm{nl}})^{k}\). Here, \(P_{\mathrm{c}}\) denotes the critical power threshold at which nonlinear behaviour emerges, while \(P_{\mathrm{nl}}\) represents the power dissipated by the nonlinear process. The exponent *k* is a rational number dependent on underlying physical mechanisms. The observed flat-bottom shapes in the plot agree well with the case for \(k > 1\), where a local breakdown of superconductivity in a Nb thin-film resonator is attributed to the origin of the nonlinearity. The further details of the local breakdown in our resonators will be discussed later in this section.

By fitting \(S_{\mathrm{21}}\) spectra, we extracted the resonator’s external (\(Q_{\mathrm{ext}}\)) and internal (\(Q_{\mathrm{int}}\)) quality factors as well as the intra-photon numbers (\(\bar{n}_{\mathrm{m}}\)). For the fitting, we used the algorithm described in [28] and restricted our analysis to spectra acquired below \(P_{\mathrm{c}}\), where the Lorentzian line shape of the resonance begins to distort. Following the onset of nonlinearity, a significant increase in resonator loss precludes any substantial rise in \(\bar{n}_{\mathrm{m}}\). From \(\bar{n}_{\mathrm{m}}\), we estimated the amplitude of the intra-current *I* in the coplanar waveguide resonator using a 3D finite element method (FEM) with COMSOL. The COMSOL simulation estimates the relation between \(\bar{n}_{\mathrm{m}}\) and *I*, which scales as \(I \propto \sqrt{\bar{n}_{\mathrm{m}}}\). Figure 1(b) shows *I* and \(Q_{\mathrm{int}}\) as a function of the input power. The current sublinearly increases with increasing the input power and takes the maximum value of \(I_{\mathrm{max}} \sim \) 0.87 A at the threshold power. This large microwave current is accompanied by a high internal *Q* factor of \(Q_{\mathrm{int}} = 6\times 10^{4}\), contrasting with the typical values for normal conductors (\(Q_{\mathrm{int}} \sim 40\) [20]). Hereafter, we denote \(Q_{\mathrm{int}}\) specifically at the point of achieving \(I_{\mathrm{max}}\) as \(Q^{\mathrm{m}}_{\mathrm{int}}\).

To further enhance \(I_{\mathrm{max}}\), understanding the underlying origin of the nonlinear dissipation is imperative. The dissipation associated with the local breakdown is expected to be caused by, for instance, a surface magnetic field \(B_{\mathrm{s}}\) exceeding the critical field \(B_{\mathrm{c}}\) or the heating of impurities in a superconducting film due to a large AC current. Assuming that our nonlinear dissipative process originates from such local breakdown, we first examine the magnetic field distribution around the surface of a superconducting coplanar waveguide. To this end, we performed a cross-sectional FEM simulation using COMSOL. We model superconducting Nb electrodes by considering them as an environment with the following complex permittivity [29]:

where \(\epsilon _{0}\) and \(\mu _{0}\) represent vacuum permittivity and permeability, respectively. The real part of the Mattis-Bardeen conductivity, \(\sigma _{1}(\omega ,T)\) has been set to zero to simulate loss-less superconductivity. In this way, we can take the magnetic penetration depth \(\lambda (T)\) into account by considering the Maxwell-London equations at a given frequency *ω*. Here, we consider the case where the temperature is much lower than the critical temperature (\(T \ll T_{\mathrm{c}}\)) and assume \(\lambda (0) = 50\) nm [30]. We set the dielectric constant of the Silicon substrate to be \(\epsilon _{\mathrm{silicon}}\) = 11.9 and the top-half calculation space as a vacuum. Figure 1(c) shows the simulated field distribution in the cross-section of a coplanar waveguide with \(w = 10\) *μ*m and \(s = 1/2w\). The magnetic field strength inside the Nb electrodes is exponentially suppressed over the distance of \(\lambda = 50\) nm from the surface, as defined in equation (1). As expected from Lenz’s law, the field concentrates at the corners of the electrodes, where the superconductivity provably breaks down at first when one ramps the current up.

To verify the hypothesis, we fabricated various resonators with different widths *w* and gaps \(s = 1/2w\) and estimated the maximum magnetic field \(|B^{\mathrm{max}}_{\mathrm{s}}|\) at the corners when \(I_{\mathrm{max}}\) was achieved. Figure 1(d) shows the measured \(I_{\mathrm{max}}\) at different geometries: *w* ranges from 10 to 50 *μ*m, *s* is fixed to be *s* = 1/2*w*, and the thickness *t* is 1.2 *μ*m for all resonators. The maximum current \(I_{\mathrm{max}}\) goes up from 0.48 to 1.1 A with increasing *w* and *s*. We remark \(Q_{\mathrm{int}}^{\mathrm{m}} \gtrsim 10^{4}\) for all resonators. We calculated \(|B^{\mathrm{max}}_{\mathrm{s}}|\) at the corners by using COMSOL assuming these \(I_{\mathrm{max}}\) flowing in the signal electrodes. The calculated \(|B^{\mathrm{max}}_{\mathrm{s}}|\) at the corners are nearly constant around ∼70 mT within the fitting error bars despite the current increase of more than a factor of two with increasing the width and gap. The constant breakdown field at the corners suggests that the concentrated field locally breaks the superconductivity at the corners first, which induces significant microwave loss to the system. This limits the amount of overall current flowing into the signal electrodes, leading to the determination of \(I_{\mathrm{max}}\) in our coplanar geometry. However, the estimated magnitude of \(|B^{\mathrm{max}}_{\mathrm{s}}|\) falls below the superheating field of \(B_{\mathrm{sh}} \sim 200\) mT typically observed in bulk Nb microwave cavities utilized for particle accelerators [25]. This discrepancy may stem from differences in material quality, notably the residual resistance ratio (RRR). While bulk Nb cavities regularly exhibit RRR values in the several hundred, our sputtered Nb films demonstrate a lower value of RRR ∼4. The local heating of the material impurities at the corners seems to be the origin of the nonlinear dissipation in our superconducting resonators.

### 2.2 Coplanar geometry dependence of magnetic field concentration

Next, we simulate the influence of geometric parameters, specifically *w*, *s*, and *t*, on a surface magnetic field \(|B_{\mathrm{s}}|\) at the electrode film corners. In contrast to the previous section where we applied maximum currents that break the superconductivity, here, we assume a constant current of \(I = 1\) A flowing into the signal electrodes to investigate the geometric parameter dependence on \(|B_{\mathrm{s}}|\). This provides insights crucial for optimizing trap chip design. Figure 2 illustrates variations in \(|B_{\mathrm{s}}|\) at a film corner for different geometric parameters. We observe a decrease in \(|B_{\mathrm{s}}|\) as these parameters increase. In particular, the changes in *w* and *t* significantly impact \(|B_{\mathrm{s}}|\) compared to the variation in *s* within this parameter range. For typical surface trap chips [14, 20, 31, 32], optimizing design involves narrowing *s* (\(s < 10\) *μ*m) and increasing *t* (\(>~\) several *μ*m) to minimize charge noise from dielectric surfaces. Typically, *w* is several tens of micrometers due to geometric constraints for trapping ions at appropriate distances from the surface. To decrease \(|B_{\mathrm{s}}|\) at the corners while satisfying these constraints, maximizing *t* and designing *w* to be as wide as possible within the limitations are effective strategies.

### 2.3 Temperature dependence of \(Q^{\mathrm{m}}_{\mathrm{int}}\) and \(I_{\mathrm{max}}\)

We investigated the thermal tolerance of superconducting Nb resonators. By changing sample temperature using a heater in a cryostat, we assessed the temperature dependence of \(I_{\mathrm{max}}\) and \(Q_{\mathrm{int}}^{\mathrm{m}}\) for the resonators shown in Fig. 1(d). Figure 3(a) shows the temperature dependence of \(Q_{\mathrm{int}}^{\mathrm{m}}\). At the lower temperatures, \(Q_{\mathrm{int}}^{\mathrm{m}} \) is lower for the wider resonators, likely due to more effective coupling of electromagnetic fields to the bottom Copper holder compared to the narrower resonators. As the temperature increases from \(T = 2\) to 5 K, \(Q_{\mathrm{int}}^{\mathrm{m}} \) gradually reduces to 10^{4} across all the resonators. This reduction is attributed to the generation of quasiparticles resulting from the absorption of thermal phonons. The higher current concentration at the corners of the narrower resonators may lead to increased microwave loss at higher temperatures compared to the wider resonators, thereby causing a steeper reduction in the *Q* factors, as illustrated in the figure.

Despite the decline in \(Q_{\mathrm{int}}^{\mathrm{m}} \), \(I_{\mathrm{max}}\) remains relatively stable up to \(T = 5\) K for all the resonators, as depicted in Fig. 3(b). This suggests that at these high *Q* factors, \(I_{\mathrm{max}}\), determined by \(B^{\mathrm{max}}_{\mathrm{s}}\) at the film corners, remains unaffected by thermally excited quasiparticles. Importantly, given that cryogenic ion trap systems readily achieve temperatures around \(T \sim 5\) K [33, 34], our findings suggest that such systems can preserve substantial current while maintaining low microwave loss.

### 2.4 Superconducting surface trap chip

So far, we have evaluated simple coplanar waveguide resonators to elucidate the geometry and temperature dependencies of \(I_{\mathrm{max}}\) and \(Q^{\mathrm{m}} _{\mathrm{int}}\). Here, we fabricate a superconducting surface trap chip including a microwave resonator as well as RF and DC electrode patterns to quantify \(I_{\mathrm{max}}\) and \(Q^{\mathrm{m}} _{\mathrm{int}}\) with a chip design that is more similar to an actual surface trap design. Figure 4(a) shows a fabricated trap chip of which the design is based on [14]. The sputtered Nb film thickness is 1.2 *μ*m and the substrate is high-resistive silicon. The meander line (denoted as MW in Fig. 4(a)) is designed to be positioned at the current antinode of a \(\lambda /4\) microwave resonator with a resonance frequency of 5.638 GHz. The nominal width of the meander is 30 *μ*m and the gap to the ground is 5 *μ*m. The phase relation between these three parallel lines creates a microwave field quadrupole, generating a field gradient with a field null point above the central line. The RF, DC electrodes and microwave lines (MW2) for homogeneous microwave magnetic fields are all floated. The other end of the microwave resonator (not shown) is capacitively coupled to a transmission feed line, which allows us to quantify \(\bar{n}_{\mathrm{m}}\) at a given input power as described before. In order to estimate the current amplitudes *I* from the obtained \(\bar{n}_{\mathrm{m}}\), we performed a 3D COMSOL simulation of the chip and derived the relation between them, which scales as \(I \propto \sqrt{\bar{n}_{\mathrm{m}}}\).

The estimated *I* continuously increases with the input power until the nonlinearity appears. We extracted \(I_{\mathrm{max}}\) and \(Q_{\mathrm{int}}^{\mathrm{m}}\) and plotted them as a function of *T* in Fig. 4(b). At \(T = 2\) K, we observed a substantial current of \(I_{\mathrm{max}} = 0.80\) A, slightly smaller than the value of \(I_{\mathrm{max}} = 0.88\) A obtained for the coplanar waveguide resonator with \(w = 30\) *μ*m and \(s = 15\) *μ*m shown in Fig. 1(d). This small reduction can be understood as the effect of the narrower gap, which we discussed in Fig. 2(a). The obtained \(I_{\mathrm{max}}\) remains nearly constant over *T* of 2 - 5 K, consistent with the behavior shown in Fig. 3(b). We also demonstrated a high \(Q_{\mathrm{int}}^{\mathrm{m}}\) of 7300 at 2 K and \(Q_{\mathrm{int}}^{\mathrm{m}} = 6000\) at 5 K, indicating a superior quality factor compared to normal metal resonators. However, the \(Q_{\mathrm{int}}^{\mathrm{m}}\) values are slightly lower than those of the superconducting coplanar resonators shown in Fig. 3(b). The reduced \(Q_{\mathrm{int}}^{\mathrm{m}}\) may be attributed to a larger magnetic field component coupled to the bottom copper holder and free space due to the presence of the additional electrodes, which could function as antennas. The magnetic field gradient at the ion position, located 60 *μ*m above the chip surface, is estimated to be \(\partial{B_{x}}/\partial{z} = 30\) T/m for \(I_{\mathrm{max}} = 0.80\) A using COMSOL. We remark that for practical use in ion trapping, the silicon substrate should be replaced with, for instance, a sapphire substrate to ensure a large RF-break down voltage. Additionally, a sapphire substrate may be advantageous for further reducing on-chip heating due to its superior thermal conductivity at cryogenic temperatures.

## 3 Superconducting 3D Paul trap chip

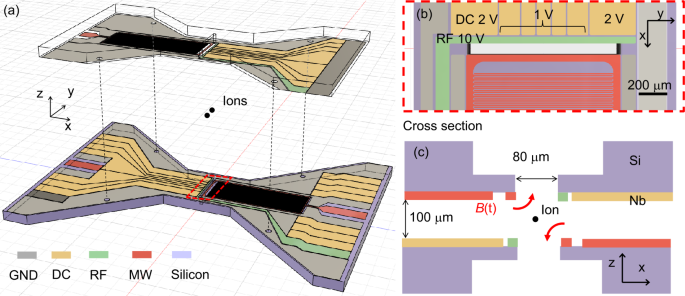

In this section, we introduce a 3D trap design that offers a range of benefits, including a large field gradient and a deep trap potential. Figure 5(a) illustrates a schematic of our 3D superconducting Paul trap chip with electrodes situated on opposing faces of both the top and bottom chips. These chips are fabricated separately using standard microfabrication techniques and subsequently assembled using a flip-chip assembly (details provided later in this section). In the assembled chip, the superconducting RF and DC electrodes are positioned diagonally opposite each other on the chips, as depicted in the enlarged and cross-sectional schematics (Fig. 5(b) and (c)). Applying an RF voltage to the electrodes generates a trap potential that is more harmonic and deeper than 2D surface traps. This is expected to enhance trap lifetime and optimize ion transport. In addition, the segmented DC electrodes allow for axial confinement as well as compensation of ion position and motional polarization direction.

In order to generate a microwave magnetic field gradient, we incorporate two identical superconducting microwave LC resonators into diagonally opposite positions, oriented opposite to the DC and RF electrodes. Each LC resonator comprises a U-shaped inductor and an interdigitated capacitor (Fig. 5(b)). When two identical resonators exhibit electromagnetic coupling greater than their decay rates, the degenerate modes split into Helmholtz-like (H) and Anti-Helmholtz-like (AH) modes. These normal modes generate a homogeneous magnetic field and a magnetic field gradient at the ion position, respectively. The trap chip has horizontal optical accesses for cooling and readout laser beams together with a vertical through-hole window to collect ion fluorescence. A DC magnetic field can be applied in-plane to determine a spin quantization axis and resolve the frequency degeneracy of spin transitions.

### 3.1 RF trap potential

We simulate a trap potential of our 3D trap. Here, we assume the gap between the top and bottom chips to be 100 *μ*m and the width of the RF electrodes to be 50 *μ*m. The horizontal distance between the RF and microwave electrodes is 80 *μ*m, while the gap between the RF and neighbouring DC electrodes is 5 *μ*m. The substrate assumed is insulating silicon with a dielectric constant of 11.9. The simulation considers a full potential [35]:

where a ^{9}ion is trapped by the combination of a DC potential \(\Phi _{\mathrm{dc}}(\mathbf{r})\) and an RF pseudopotential \(\Phi _{\mathrm{rf}}(\mathbf{r})\). In the adiabatic approximation, the RF pseudopotential experienced by an ion from an RF field is described by the ponderomotive potential [35]:

where *Q* and *M* are the charge and mass of a ^{9}Be^{+} ion, and \(\Omega _{\mathrm{rf}}\) and \(E_{\mathrm{rf}}(\mathbf{r})\) are the RF frequency and the simulated RF field amplitude. To obtain the pseudopotential, we performed a static 3D FEM simulation for \(E_{\mathrm{rf}}(\mathbf{r})\) and calculated equation (3) with an RF frequency of \(\Omega _{\mathrm{rf}} = 2\pi \times 70\) MHz and an RF voltage of \(V_{\mathrm{rf}} = 10\) V. We assumed the endcap DC bias to be 2 V and the bias of the inner DC electrodes to be 1 V for both the top and bottom chips (see Fig. 5(b) for the bias configuration). Here, we bias the inner electrodes to lift the degeneracy of radial secular modes and to rotate the radial trap axes such that the propagation vector of a Doppler cooling laser beam has finite overlaps with all motional axes.

Figure 6(a) displays the simulated \(\Phi (\mathbf{r})\) on the radial plane. Due to the DC offset at the inner electrodes, the shape of the radial trap potential elongates diagonally, leading to the splitting of the radial mode into two different eigenfrequencies. By calculating the Hessian matrix, we determined the high and low secular frequencies to be (\(\omega _{\mathrm{HF}}\), \(\omega _{\mathrm{LF}}\)) = \(2\pi \times \)(4.8, 4.5) MHz, with the corresponding radial trap axes positioned at (\(\theta _{ \mathrm{HF}}\), \(\theta _{\mathrm{LF}}\)) = (36, -53)^{∘} from the x-axis, respectively. The shallowest trap depth is approximately 60 meV under the assumed RF and DC voltages. We estimated the *q*-parameter in the Mathieu differential equation [36] to be \(q_{r} \sim 0.19\) in the absence of DC offsets. Using the secular frequencies and the *q* parameter, we derived *a*-parameters of approximately (\(a_{\mathrm{HF}}\), \(a_{\mathrm{LF}}\)) ∼ (0.85, -1.7)×10^{−3} for the high and low frequency axes, respectively. Additionally, we estimated the axial trap potential to be around 70 meV, with a secular frequency of \(\omega _{\mathrm{ax}} = 0.93\) MHz. This set of *a*- and *q*-parameters suggests that the trap condition lies deep within the stable regime [36].

### 3.2 Microwave magnetic field

Next, we examine the magnetic field distribution when the AH mode is excited. The field gradient generated by the AH mode can be used to induce spin-motion coupling for two-qubit gates. We conducted a 2D simulation with \(I = 1\) A applied to the diagonally opposite microwave electrodes. Figure 6(b) illustrates the quadrupole magnetic field distribution \(|B^{\mathrm{AH}}(r,\theta )|\) on the radial plane with arrows indicating the magnetic field direction. The magnetic null of the AH mode coincides with the radial center and overlaps with the RF null.

The interaction between a spin transition of an ion and a microwave magnetic field from the AH mode is expressed as \(\boldsymbol{\mu} \cdot \boldsymbol{B}^{\mathrm{AH}}\), where ** μ** denotes the magnetic dipole of an ion. The specific form of this product varies with experimental configurations. In this study, we consider a weak DC magnetic field \(B_{0}\) applied in the xy plane at an angle

*ϕ*relative to the x-axis. This magnetic field determines the spin quantization axis and resolves the frequency degeneracy of hyperfine transitions. We also assume to drive a hyperfine transition with \(\Delta m = 0\), where Δ

*m*represents the difference in the quantum number

*m*of the projection of the total atomic angular momentum

*F*along the quantization axis. Under these conditions, the amplitude of the inner product \(\boldsymbol{\mu} \cdot \boldsymbol{B}^{\mathrm{AH}}\) takes the form of \(\mu _{\parallel} B_{x}^{\mathrm{AH}}(r,\theta ) \cos{\phi}\). Here, \(\mu _{\parallel}\) represents the magnetic transition moments associated with the field components parallel to the quantization axis. At the ion’s position of \(r \sim 0\), the term arising from the first derivative in the Taylor series represents spin-motion coupling \(\mu _{\parallel} \frac{\partial B_{x}^{\mathrm{AH}}(0, \theta )}{\partial r}q^{0}\cos{\phi}\) for a

*π*-transition, where \(q^{0}\) is the zero point motion of an ion.

The *θ* dependence of the magnetic field gradient along the radial direction can be determined by calculating the first derivative of the simulated field. The \(B_{x}\) components of the field gradients along the HF and LF axes are estimated to be \(\partial B_{x}^{\mathrm{AH}}(0, \theta _{\mathrm{HF}})/\partial r = 72\) T/m and \(\partial B_{x}^{\mathrm{AH}}(0, \theta _{\mathrm{LF}})/\partial r = 56\) T/m, respectively. The maximum magnitude of the field gradient obtained with the 3D trap exceeds that of the 2D surface trap shown in Fig. 4 by more than two-fold.

### 3.3 3D trap chip fabrication

We fabricated a 3D trap chip using typical microfabrication techniques (see Fig. 7 for the processes). We first sputtered a 1.2 *μ*m-thick Nb film on a 300 *μ*m-thick high-resistance silicon substrate (Step I). We patterned electrodes by photolithography followed by reactive ion etching (Step II). We defined the shape of an optical window, holes for chip assembly and outer chip boundaries by etching Si, 100 *μ*m deep from the top surface, using the Bosch process with a thick photoresist mask (Step III). After removing the mask, we deposited a 300 nm Aluminum layer to protect the surface from the following process (Step IV). We then created an optical window and detached the chip from the surrounding substrate by etching from the backside of the chip towards the patterns defined from the top surface (Step V). This etching was processed again by the Bosch process with a thick photoresist mask. After removing the resist mask and the Al protective layer, we measured resonance frequencies, maximum currents, and *Q* factors for each resonator at cryogenic temperatures. We selected top and bottom resonators with a minimum resonant frequency difference of 2 MHz and proceeded with the flip-chip assembly. This frequency difference was minimized to be much smaller than the normal mode splitting of the coupled resonators. To assemble, we mounted glass beads with a diameter of 150 *μ*m onto the alignment holes on the bottom chip. We also glued 100 *μ*m-tall Pb blocks on the Nb pads with a small amount of silver paste (Step VI) to electrically connect the top and bottom chips. Using a manual die bonder, we flipped the top chip and pilled it on top of the bottom chip such that the glass beads on the bottom chip fit in the top alignment holes (Step VII). In this process, the top Nb pads were also glued on top of the Pb blocks. The layers of silver paint were sintered at 180^{∘}*C*, and this sintering process mechanically fixed the top and bottom chips. With these glass beads and the alignment holes, we can align the chips with a horizontal misalignment of less than several *μ*m and a tilt of less than 1 mrad. Finally, we mounted the assembled chips on a printed circuit board (PCB) and performed wire bonding from the PCB to the bottom Nb pads.

### 3.4 Microwave characterization

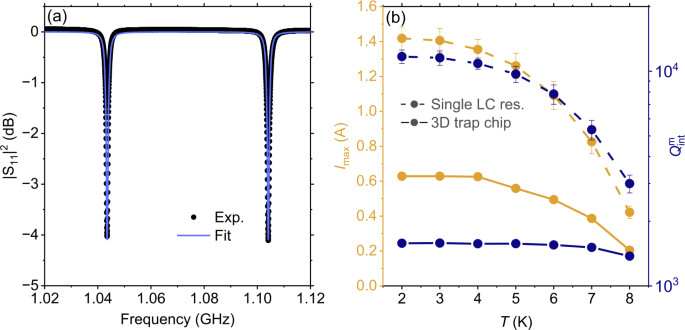

In this section, we discuss the characteristics of the coupled microwave resonators in the 3D trap chip. To assess the resonators, we acquired \(S_{\mathrm{11}}\) spectra by sending microwave input signals to the bottom resonator (Port1) and then measuring returning signals using a VNA. The spectra were normalized by a spectrum obtained above the superconducting transition temperature to extract the response from the resonators. Figure 8(a) displays the \(|S_{\mathrm{11}}|^{2}\) spectrum of the coupled resonators at \(T = 2\) K with an input power of 11.5 dBm. Two distinctive peaks at 1.044 and 1.104 GHz correspond to the AH and H modes, respectively. The observed normal mode splitting is \(2g_{\mathrm{m}} = 2\pi \times 60\) MHz, significantly larger than both the linewidths of each mode and the resonance frequency mismatch of \(\delta _{\mathrm{bt}} = f_{\mathrm{bottom}} - f_{\mathrm{top}} = 2\) MHz that are measured before the assembly. In order to extract the resonator *Q* factors, we fit the obtained spectrum using a model based on the input-output formalism for coupled resonators. The equations of motion for coupled resonators can be described as follows:

with the photon input-output relations \(a^{\mathrm{out}}_{t} = a^{\mathrm{in}}_{t} - \sqrt{\omega _{r}/Q_{\mathrm{ext}}} a_{t}\) and \(a^{\mathrm{out}}_{b} = a^{\mathrm{in}}_{b} - \sqrt{\omega _{r}/Q_{\mathrm{ext}}} a_{b}\). Here, the subscripts *t* and *b* represent operators for the top and bottom resonators, respectively. The operators *a*, \(a^{\mathrm{in}}\), and \(a^{\mathrm{out}}\) denote the resonator photon annihilation operator, and the input and output operators, respectively. The detuning Δ expresses the frequency difference between the resonator resonance and a microwave drive. In this model, we neglect the small detuning \(\delta _{\mathrm{bt}} \ll 2g_{\mathrm{m}}\) and assume that the top and bottom resonators have the same \(Q_{\mathrm{int}}\) and \(Q_{\mathrm{ext}}\). We solved equations (4) and (5) and fit the magnitude and phase components of \(S_{\mathrm{11}}\) spectrum together. Figure 8(a) shows that the fit spectrum (solid blue line) closely matches the experimental result, suggesting that the simple model assumed here reasonably describes the response of the actual coupled resonators.

Next, we estimated \(Q_{\mathrm{int}}\), \(Q_{\mathrm{ext}}\) and \(\bar{n}_{\mathrm{m}}\) by measuring and fitting spectra at various temperatures and input powers. To estimate \(I_{\mathrm{max}}\), we again acquired the relation between a current amplitude and \(\bar{n}_{\mathrm{m}}\) using a 3D COMSOL simulation. In Fig. 8(b), we present the temperature dependence of \(I_{\mathrm{max}}\) and \(Q^{\mathrm{m}}_{\mathrm{int}}\) for the 3D trap (solid lines). The extracted \(Q^{\mathrm{m}}_{\mathrm{int}}\) is constrained to approximately 1600 and exhibits no discernible temperature dependence up to 7 K. This is primarily attributable to the predominant microwave loss stemming from the large resistivity of the thin silver paint layers. An additional measurement indicated that the conductivity of the silver paint may approximate 10^{3} S/m at 2 K. According to COMSOL simulations, this low conductivity imposes limitations on the resonator’s *Q* factor, reaching approximately 1000.

On the other hand, the maximum current at 2 K was estimated to be \(I_{\mathrm{max}} = 0.63\) A, generating \(\partial B_{x}(\theta _{\mathrm{HF}})/\partial x = 48\) T/m at the AH mode frequency. The fabricated superconducting 3D trap chip shows a large magnetic field gradient and an order of magnitude low loss compared with normal conductor chips. Nevertheless, the fabricated superconducting 3D trap chip offers scope for improvement when contrasted with superconducting 2D resonators. A fabricated 2D LC resonator, employing the same resonator design as the 3D trap, demonstrates higher \(I_{\mathrm{max}}\) with even lower loss over the entire temperature range (e.g., \(I_{\mathrm{max}} = 1.4\) A and \(Q^{\mathrm{m}}_{\mathrm{int}} = 1.1\times 10^{4}\) at 2 K, see dashed lines). While the cause of the relatively low \(I_{\mathrm{max}}\) for the 3D trap is currently under investigation, excessive heat generation resulting from the relatively low \(Q_{\mathrm{int}}\) may contribute to the breakdown of superconductivity under strong driving conditions.

### 3.5 Light sensitivity

In practical applications, the presence of laser beams during cooling and readout of ions can potentially diminish the performance of superconducting trap chips due to quasiparticle excitation within the superconducting film. In this section, we explore how the internal *Q* factor varies with light exposure on a superconducting chip. Specifically, we utilized the bottom trap chip previously employed in the experiment. We measured \(Q_{\mathrm{int}}\) as a function of the light-emitting diode (LED) power. The LED utilized in the experiment emitted light with a center wavelength of 308 nm and a bandwidth of 30 nm. The focused spot on the chip had a diameter of 3 mm, effectively covering the entire resonator surface. We adjusted the illumination power density from 0 to 25 mW/cm^{2}. The maximum LED power density used in this experiment is higher than the power density that the flip-chip surface would experience under in-plane cooling or detection laser beams of several hundred *μ*W.

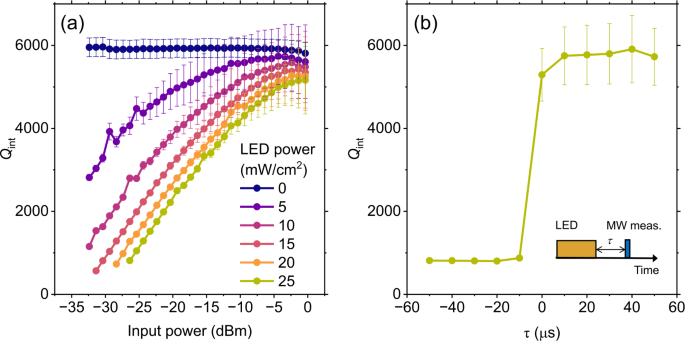

Figure 9(a) illustrates \(Q_{\mathrm{int}}\) measured at 3 K as a function of the microwave input power under various continuous illumination powers. At low microwave input power, \(Q_{\mathrm{int}}\) deteriorates rapidly with increasing the illumination power density. This degradation is expected to arise from quasiparticle excitation within the Nb film. Interestingly, the diminished \(Q_{\mathrm{int}}\) rebounds to its original value at high microwave input power. This phenomenon, known as quasiparticle redistribution [37–39], occurs when a microwave drive induces a redistribution of the nonequilibrium quasiparticle density \(f(E)\), such that \(f(E) - f(E+\hbar \omega _{\mathrm{m}})\) decreases with increasing input power. Consequently, this reduction diminishes the optically induced real part of the complex conductivity, thereby restoring \(Q_{\mathrm{int}}\). Therefore, the impact of light exposure on the microwave performance is minimal.

We also examined how fast the degraded \(Q_{\mathrm{int}}\) at low microwave input power recovers to the original value when the illumination is switched off. For this experiment, we employed square voltage pulses to modulate the LED output and trigger the single-frequency measurement of the VNA with a delay time *τ* from the moment the LED output was switched off (refer to the inset of Fig. 9(b)). Utilizing various delay times, we conducted microwave spectra measurements by sweeping the measurement frequency during the triggered single-frequency measurement. Subsequently, we re-estimated \(Q_{\mathrm{int}}\) by fitting the obtained spectra. The \(Q_{\mathrm{int}}\), degraded to 800 during LED illumination, promptly rebounded to its original value of 5800 within the measurement delay step of 10 *μ*s upon switching off the LED output. Considering that the characteristic timescales for quasiparticle-phonon scatterings in Nb films are less than ∼ 150 ns [40], we expect a recovery timescale significantly faster than 10 *μ*s. The recovery timescale of <10 *μ*s is much faster than the decoherence timescale of ion qubits and other ion-based operations. The fast recovery of the *Q* factor ensures no degradation in the performance of microwave sideband cooling and microwave gates by halting laser beam emissions during these operations.

## 4 Power efficient two-qubit gate scheme

In this section, we propose a power-efficient two-qubit gate scheme by harnessing the high \(Q_{\mathrm{int}}\) of superconducting resonators. Before exploring the power-efficient scheme, we first examine the power efficiency of the typical Mølmer–Sørensen (MS) gate [41].

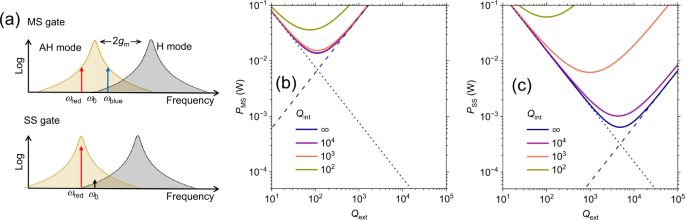

Figure 10(a) illustrates a frequency diagram of the MS scheme, considering two ^{9}Be^{+} ions interacting with the resonator modes of the 3D trap chip. The low- and high-frequency resonance modes represent the AH and H modes of the coupled resonators, respectively. The AH mode’s center frequency resonates with a spin transition frequency \(\omega _{0}\). While one can consider using various types of spin transitions for the gate, we assume the *π*-transition , which has a large magnetic transition moment and low-frequency sensitivity at low DC magnetic fields. The DC magnetic field assumed here lies within the xy plane and has an angle *ϕ* from the x-axis. The application of a DC magnetic field \(B_{0} = 1\) mT resolves the degeneracy among the hyperfine transition frequencies, producing a frequency separation of ∼7 MHz. This field strength is much weaker than the critical magnetic field of Nb films [42, 43]. Hence, any attendant reduction in the *Q* factor and \(I_{\mathrm{max}}\) attributable to this supplementary DC magnetic field is expected to be negligible. The *π*-transition interacts with a microwave magnetic component parallel to its magnetic transition moment, as discussed in Sect. 3.

To realize the MS-type interaction, we employ red and blue sideband drives with small frequency detunings ±*δ* from motional sidebands of the spin transition. The red and blue drive frequencies are described as \(\omega _{\mathrm{red}} = \omega _{0} - \omega _{\mathrm{rock}} - \delta \) and \(\omega _{\mathrm{blue}} = \omega _{0} + \omega _{\mathrm{rock}} + \delta \), where \(\omega _{\mathrm{rock}}\) denotes the rocking mode frequency of the ions. We assume these drives only generate magnetic field gradients at the ion positions without exciting magnetic field components. This can be achieved by selectively driving the AH mode using inputs to each resonator with proper phase offsets.

To determine the necessary power for the MS gate to achieve a specific sideband coupling \(\Omega _{\mathrm{M}}\), we solved equations (4) and (5) to obtain the relation between an input power \(P_{\mathrm{MS}}\) and a resonator photon number needed to achieve the desired \(\Omega _{\mathrm{M}}\). The required power for the MS gate is given by

Here, we assume that the top and bottom resonators are identical. Additionally, we assume \(\omega _{r} \gg g_{\mathrm{m}}, \omega _{\mathrm{rock}} \gg \delta \) and the red and blue sideband Rabi frequencies \(\Omega _{\mathrm{M}}\) are the same. Other parameters include \(\mu _{\parallel}\), \(\theta _{\mathrm{HF}}\), *ϕ*, \(b_{j}\) (rocking mode amplitude of *j*th ion), \(q^{0}_{j}\) (zero point motion of *j*th ion), and \(B^{\mathrm{AH0}}_{x}\) (single-photon magnetic field of the AH mode derived from a COMSOL simulation). The last fraction in equation (6) represents a resonator photon number needed to achieve a certain \(\Omega _{\mathrm{M}}\).

Figure 10(b) presents the values of \(P_{\mathrm{MS}}\) required to achieve \(\Omega _{\mathrm{{M}}} = 2\pi \times 1\) kHz for various \(Q_{\mathrm{{ext}}}\) and \(Q_{\mathrm{{int}}}\). The parameters used in this calculation are summarized in Table 1. As \(Q_{\mathrm{{int}}}\) decreases, the required power \(P_{\mathrm{{MS}}}\) decreases, reaching the minimum of \(P_{\mathrm{{MS}}} \sim 14\) mW when \(Q_{\mathrm{{int}}} > 1000\). This minimum is determined by the two competing dependencies shown as the dashed and dotted lines. For low \(Q_{\mathrm{{ext}}}\) (\((2\omega _{\mathrm{{rock}}}/\kappa _{\mathrm{{ext}}})^{2} \ll 1\)), \(P_{\mathrm{{MS}}}\) decreases following the dependency \(P_{\mathrm{{MS}}} \propto 1/Q_{\mathrm{{ext}}}\) (dotted line). In this region, a higher *Q* factor of the AH mode allows for a larger gain of resonator photon number from the input. Conversely, for higher \(Q_{\mathrm{{ext}}}\) (\((2 \omega _{\mathrm{{rock}}}/\kappa _{\mathrm{{ext}}})^{2} > 1\)), \(P_{\mathrm{{MS}}}\) increases according to the dependency \(P_{\mathrm{{MS}}} \propto Q_{\mathrm{{ext}}}\) (dashed line). This is due to limited input coupling to the AH mode, as the drive frequencies \(\omega _{\mathrm{{red}}}\) and \(\omega _{\mathrm{{blue}}}\) fall out of the AH mode bandwidth.

To enhance the power efficiency of two-qubit gates by overcoming the limitations posed by the resonance bandwidth, we propose a single-sideband (SS) gate scheme. The original idea of the SS gate scheme was proposed in the context of cavity QED systems [44, 45] and later proposed and demonstrated in trapped ion systems [46, 47]. The bottom row of Fig. 10(a) illustrates the frequency diagram of the gate scheme. In this scheme, the center frequency of the AH mode is resonant with \(\omega _{\mathrm{{red}}}\) to efficiently generate the magnetic field gradient. Conversely, the carrier drive at frequency \(\omega _{0}\) rotates the spin state by inducing a homogeneous magnetic field through the Lorentzian tail of the H mode. The AH and H modes can be selectively excited by driving each resonator with proper phase offsets. The corresponding SS Hamiltonian in the interaction picture is given by:

In this expression, \(\sigma ^{+(-)}_{j}\) refers to the creation (annihilation) operator of the spin-up and spin-down states of the *j*th ion, denoted as and , respectively. Similarly, the creation (annihilation) operator of the rocking mode is represented by \(a^{\dagger}\) (*a*), and \(\Omega ^{j}_{\mathrm{C}}\) (\(\Omega ^{j}_{\mathrm{S}}\)) is the spin flip-flop (sideband) Rabi frequencies of the *j*th ion. Each coupling strength is described as:

where the x-axis components of the magnetic fields excited through the H and AH modes are denoted as \(B^{\mathrm{H}}_{x}\) and \(B^{\mathrm{AH}}_{x}(r, \theta )\), respectively. Hereafter, we assume \(\Omega ^{j}_{\mathrm{C}} = \Omega _{\mathrm{C}}\) and \(|\Omega ^{j}_{\mathrm{S}}| = \Omega _{\mathrm{S}} = - \frac{\mu _{\parallel}}{\hbar} \frac{\partial{B^{\mathrm{AH}}_{x}(0, \theta _{\mathrm{HF}})}}{\partial{r}}|b_{j}|q^{0}_{j}\). After moving onto a frame rotating at \(\Omega _{\mathrm{C}}\) and assuming \(\Omega _{\mathrm{C}} \gg \Omega _{\mathrm{S}}, \delta \), one can obtain the Hamiltonian:

Here, \(S_{x} = \frac{1}{2} \sum _{j=1,2} sgn(b_{j})\left (\sigma ^{+}_{j} + \sigma ^{-}_{j}\right )\). A red sideband drive with a strong carrier drive induces a spin-dependent force on the ions. By applying the drives for a time \(\tau _{\mathrm{S}} = 2\pi /\delta = 2\pi /\Omega _{\mathrm{S}}\), one can produce a Bell state from an initial state . However, neglected terms in equation (7) under the assumption of \(\Omega _{\mathrm{C}} \gg \Omega _{\mathrm{S}}, \delta \) lead to a small Bell state infidelity at a finite \(\Omega _{\mathrm{C}}\). This infidelity is attributed to the Stark shift of states and , and can be reduced by increasing \(\Omega _{\mathrm{C}}/\Omega _{\mathrm{S}}\). By numerically solving equation (7), we confirm that the additional infidelity compared with the MS gate is suppressed to be \(7\times 10^{-4}\) when \(\Omega _{\mathrm{C}}/\Omega _{\mathrm{S}} = 15\). At this Rabi ratio, an additional microwave resonator current to obtain \(\Omega _{\mathrm{C}}\) is much smaller than that for \(\Omega _{\mathrm{S}}\). Hence, the amount of additional current for the carrier drive is negligible with respect to the critical current.

We explored the necessary input powers for the SS gate scheme by solving equations (4) and (5), yielding the resonator parameter dependencies of the input powers for the carrier drive (\(P_{\mathrm{C}}\)) and red sideband drive (\(P_{\mathrm{R}}\)):

Figure 10(c) illustrates the total input power \(P_{\mathrm{SS}} = P_{\mathrm{C}} + P_{\mathrm{R}}\) required to achieve \(\Omega _{\mathrm{S}} = 2\pi \times 2\) kHz and \(\Omega _{\mathrm{C}}/\Omega _{\mathrm{S}} = 15\) for various \(Q_{\mathrm{ext}}\) and \(Q_{\mathrm{int}}\). We designated \(\Omega _{\mathrm{S}} = 2\Omega _{\mathrm{M}}\) to ensure that the gate time of the SS gate (\(\tau _{\mathrm{S}} = 2\pi /\delta = 2 \pi /\Omega _{\mathrm{S}}\)) equals \(\tau _{\mathrm{M}}\). Other parameters employed in this calculation are summarized in Table 1. When \(Q_{\mathrm{int}} \geq 10^{3}\), the required \(P_{\mathrm{SS}}\) diminishes to a substantially smaller value than that for the MS gate, reaching the minimum of \(P_{\mathrm{SS}} = 0.65\) mW. For sufficiently large \(Q_{\mathrm{int}} \gg Q_{\mathrm{ext}}\), the minimum \(P_{\mathrm{SS}}\) is determined by competing dependencies of \(P_{\mathrm{C}}\) and \(P_{\mathrm{R}}\), as depicted with the dashed and dotted lines, respectively. For the low \(Q_{\mathrm{ext}}\) side, \(P_{\mathrm{R}}\) decreases following the dependency \(P_{\mathrm{R}} \propto 1/Q_{\mathrm{{ext}}}\) (dotted line). Since the red sideband drive resonates with the AH mode, a higher \(Q_{\mathrm{ext}}\) results in reduced \(P_{\mathrm{R}}\) owing to a larger gain of the AH mode photon number. On the other hand, for the high \(Q_{\mathrm{ext}}\) side, \(P_{\mathrm{C}}\) increases according to the dependency \(P_{\mathrm{C}} \propto Q_{\mathrm{{ext}}}\) (dashed line). This arises from the inefficiency of the carrier drive coupling to the H mode with increasing \(Q_{\mathrm{ext}}\) due to the limited H mode bandwidth. Unlike the MS scheme, however, the large single-photon coupling \(-\mu _{\parallel} B^{0}_{x} \cos{\phi}\) of the carrier transition requires a much smaller input power than the sideband transitions to achieve a certain coupling strength. This reduces the power limit on the high \(Q_{\mathrm{ext}}\) side compared to the MS gate, allowing us to achieve \(P_{\mathrm{SS}} = 1.0\) mW at \(Q_{\mathrm{int}} = 10^{4}\). This represents a reduction of three orders of magnitude compared to the power requirement for the MS gate with normal metallic surface trap chips.

## 5 Prospects

### 5.1 Further improvements in the maximum currents

We have demonstrated the substantial \(I_{\mathrm{max}}\) achievable with high \(Q^{\mathrm{m}}_{\mathrm{int}}\) using both superconducting 2D and 3D trap chips. However, in the case of the 3D trap chip, the attainable \(Q^{\mathrm{m}}_{\mathrm{int}}\) is limited by the loss originating from the silver paste layers utilized for electrical connections to the top chip. The relatively low \(Q^{\mathrm{m}}_{\mathrm{int}}\) suggests that the obtained \(I_{\mathrm{max}}\) is also restricted, likely due to excessive heat generation from the Joule loss. To address these challenges, substituting low-loss connections, such as aluminum or gold wire bondings, for these electrical connections would be an effective strategy. We anticipate achieving similar \(I_{\mathrm{max}}\) and \(Q^{\mathrm{m}}_{\mathrm{int}}\) values as those observed in the single LC resonator.

To further enhance \(I_{\mathrm{max}}\) while preserving high \(Q^{\mathrm{m}}_{\mathrm{int}}\), one can pursue several strategies. One approach involves mitigating \(B_{\mathrm{s}}\) at the film corners, as this concentrated field disrupts superconductivity, thereby limiting \(I_{\mathrm{max}}\). As discussed in Sect. 2, increasing the film thickness from 1 to 5 *μ*m reduces \(B_{\mathrm{s}}\) by a factor of 1.4. This enhancement should project to the increase in \(I_{\mathrm{max}}\) by the same factor. To increase the thickness, one has to be careful of accumulated stress on sputtered Nb films since strong tensile or compressive stress causes cracks in the films or deteriorates the quality of the substrate-film interface. One can suppress the film stress by performing a multilayer sputtering process, where a cooling time inserted between each sputtering layer allows adatoms to rearrange on the surface and relax the film stress [48].

Integrating a nanometric multilayer structure on a thick Nb film is also an effective option to reach a higher magnetic field [49]. The multilayer structure comprises alternating insulators and thin superconducting films with a thickness smaller than the magnetic penetration depth of Nb. The material of the thin superconducting layer must have a higher \(H_{\mathrm{c}}\) than that of Nb. Such thin film multilayer structure acts as a barrier that prevents the magnetic vortices from penetrating into the thick Nb layer, while also suppressing the microwave loss of the vortices nucleated in the thin film layers. A multilayer of (MgO/NbN)_{4} on a Nb film has demonstrated an increase in the maximum field by ten-fold compared with a bare Nb film [50].

Another approach involves enhancing the low RRR in the Nb film, as the heating of impurities within the film is likely the primary cause of the breakdown. Conventionally, magnetron-sputtered Nb films exhibit relatively low RRR values (∼ 10) due to the incorporation of impurity atoms within the film during deposition [24]. Over the years, numerous growth conditions and techniques have been explored. Notably, methods like energetic condensation growth, such as vacuum arc deposition and coaxial energetic deposition, have enabled the attainment of RRR values in the several hundred ranges, comparable to those of pure bulk Nb [24].

### 5.2 Resonator frequency tunability for the QCCD architecture

For actual trapped-ion quantum computing, integrating the 3D trap structure into the quantum charge-coupled device (QCCD) architecture emerges as a promising avenue [51, 52]. In this architecture, necessary operations are performed at spatially different zones interconnected by shuttling ions [53, 54]. Each zone serves a specific purpose, such as gate operations, state readout, and ion storage. Conceptually, all zones can adopt the flip-chip geometry, incorporating superconducting DC and RF electrodes alongside zone-specific components, such as microwave resonators for gate zones and superconducting photon detectors for readout zones.

Efficient implementation of the power-efficient two-qubit gate scheme across gate zones within the QCCD architecture hinges upon achieving frequency matching between the motional red sideband of ions and the AH mode resonances of all resonators over multiple gate zones. Currently, the resonance frequencies of our fabricated resonators exhibit a deviation of approximately 10 MHz within the same batch. One potential strategy to fulfill the frequency-matching condition involves post-fabrication tuning of the resonance frequencies of each resonator while spin transition frequency is fixed at a specific value by applying a weak DC magnetic field.

Traditionally, tuning the resonance frequencies of high-*Q* superconducting resonators involves manipulating the tunable kinetic inductance facilitated by Josephson junctions [55, 56]. However, this approach encounters challenges due to the incompatibility of Josephson junctions with high-power microwave drives. Alternatively, adjustments to the resonator capacitance offer a viable solution. Integration of a superconducting vacuum gap structure into each resonator enables capacitance adjustment by tuning the gap distance with a bias voltage between the gap. Notably, a superconducting LC resonator featuring a vacuum gap capacitor has demonstrated a *Q* factor exceeding 10^{4} and frequency tunability spanning several tens of MHz, effectively accommodating variations in resonance frequencies [57, 58].

Beyond two-qubit gate operations, efficient execution of individual qubit manipulation within the same gate zone holds another importance for the QCCD architecture. Unlike laser beams, confining microwave fields to individual ions within the same gate zone poses a significant challenge. Instead, harnessing a magnetic field gradient to drive a micromotion sideband offers a viable approach to accessing individual ions with minimal crosstalk errors [59]. Since the micromotion sideband frequency is far detuned from the red sideband frequency beyond the AH mode bandwidth, tuning the AH mode frequency between them depending on two-qubit or individual qubit manipulation becomes necessary. Consequently, the aforementioned frequency tunability of microwave resonators emerges as a critical requirement in this attempt.

## 6 Conclusion

For low-loss and power-efficient microwave operations, we demonstrated superconducting surface trap chips that feature a large microwave current and a high *Q* factor simultaneously. To this end, we first designed and fabricated 2D surface trap chips with electrodes made of superconducting Nb. Thanks to the large critical field of Nb films, we achieved \(I_{\mathrm{max}} = 0.74\) A with \(Q^{\mathrm{m}}_{\mathrm{int}} = 6000\), resulting in \(\partial{B_{z}}/\partial{x} = 28\) T/m for a 2D surface trap geometry. To generate a larger magnetic field gradient, we also developed a superconducting 3D trap chip. The microwave LC superconducting resonators incorporated in the trap chip demonstrated \(I_{\mathrm{max}} = 0.56\) A, generating \(\partial B^{\mathrm{AH}}_{x}(0, \theta _{\mathrm{HF}})/\partial r = 42\) T/m, and \(Q^{\mathrm{m}}_{\mathrm{int}} = 1600\) at 5 K. The fabricated 3D superconducting trap chip can handle a comparable amount of current and has an order of magnitude high *Q* factor compared with normal metal trap chips. By combining design and material improvements, the performance of superconducting surface trap chips could be significantly elevated. This combined effort potentially leads to achieving \(I_{\mathrm{max}} > 1\) A, resulting in \(\partial B^{\mathrm{AH}}_{x}(0, \theta _{\mathrm{HF}})/\partial r > 100\) T/m with \(Q^{\mathrm{m}}_{\mathrm{int}} > 10^{4}\) at 5 K.

Alongside the large \(I_{\mathrm{max}}\) and high \(Q^{\mathrm{m}}_{\mathrm{int}}\), we also demonstrated a remarkable resilience of \(Q^{\mathrm{m}}_{\mathrm{int}}\) to optical illumination. When a superconducting resonator was subjected to optical illumination under a weak microwave drive, \(Q_{\mathrm{int}}\) experienced degradation but promptly recovered within a time scale of less than 10 *μ*s after the illumination ceased. Since laser beams can be deactivated during microwave operations, such as sideband cooling and gate sequences, the rapid recovery of \(Q_{\mathrm{int}}\) facilitates microwave operations without compromising performance. Furthermore, even in the presence of optical illumination, a strong microwave drive effectively restored \(Q_{\mathrm{int}}\) to nearly its original value by quasiparticle redistribution. This observation implies that any stray light from concurrently operated laser operations in neighboring zones within the QCCD architecture does not interfere with microwave gate operations in the targeted zone.

Finally, we demonstrated that the required input power for a two-qubit gate can be as low as 1.0 mW, with \(Q_{\mathrm{int}} = 10^{4}\) and a gate time of 1 ms. To achieve this, we adopted the SS gate scheme, which employs a red sideband drive and a carrier drive instead of the conventional MS gate. Leveraging the high \(Q_{\mathrm{int}}\) of superconducting resonators, the SS gate enables two-qubit gates with orders of magnitude lower power consumption compared to normal metallic trap chips.

In conclusion, the findings presented in this paper highlight the potential of superconducting surface trap chips as a promising solution for realizing low-loss and power-efficient microwave-driven trapped ion systems. Future work will employ these superconducting surface trap chips to trap ions and perform quantum gate operations with comparable or faster time scales, all while maintaining significantly lower microwave power consumption and dissipation compared to conventional normal metal surface trap systems. We remark that superconducting circuits are valuable not only for microwave-based gate schemes but also for RF phase gates that drive ions near their motional frequencies [11, 60]. Although the use of high-*Q* resonators in the RF frequency domain may be impractical due to their narrow bandwidths, the low dissipation of superconducting waveguides can still be advantageous for mitigating on-chip heating. Therefore, investigating the loss characteristics and maximum current also at RF frequencies is of significant interest.

## Data Availability

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.

## Materials availability

Not applicable.

## Code availability

Not applicable.

## References

Bruzewicz CD, Chiaverini J, McConnell R, Sage JM. Trapped-ion quantum computing: Progress and challenges. Appl Phys Rev 2019;6. https://doi.org/10.1063/1.5088164.

Pino JM, Dreiling JM, Figgatt C, Gaebler JP, Moses SA, Allman M, Baldwin C, Foss-Feig M, Hayes D, Mayer K, et al.. Demonstration of the trapped-ion quantum ccd computer architecture. Nature. 2021;592(7853):209–13.

Moses SA, Baldwin CH, Allman MS, Ancona R, Ascarrunz L, Barnes C, Bartolotta J, Bjork B, Blanchard P, Bohn M, Bohnet JG, Brown NC, Burdick NQ, Burton WC, Campbell SL, Campora JP, Carron C, Chambers J, Chan JW, Chen YH, Chernoguzov A, Chertkov E, Colina J, Curtis JP, Daniel R, DeCross M, Deen D, Delaney C, Dreiling JM, Ertsgaard CT, Esposito J, Estey B, Fabrikant M, Figgatt C, Foltz C, Foss-Feig M, Francois D, Gaebler JP, Gatterman TM, Gilbreth CN, Giles J, Glynn E, Hall A, Hankin AM, Hansen A, Hayes D, Higashi B, Hoffman IM, Horning B, Hout JJ, Jacobs R, Johansen J, Jones L, Karcz J, Klein T, Lauria P, Lee P, Liefer D, Lu ST, Lucchetti D, Lytle C, Malm A, Matheny M, Mathewson B, Mayer K, Miller DB, Mills M, Neyenhuis B, Nugent L, Olson S, Parks J, Price GN, Price Z, Pugh M, Ransford A, Reed AP, Roman C, Rowe M, Ryan-Anderson C, Sanders S, Sedlacek J, Shevchuk P, Siegfried P, Skripka T, Spaun B, Sprenkle RT, Stutz RP, Swallows M, Tobey RI, Tran A, Tran T, Vogt E, Volin C, Walker J, Zolot AM, Pino JM. A race-track trapped-ion quantum processor. Phys Rev X. 2023;13:041052. https://doi.org/10.1103/PhysRevX.13.041052.

Ballance CJ, Harty TP, Linke NM, Sepiol MA, Lucas DM. High-fidelity quantum logic gates using trapped-ion hyperfine qubits. Phys Rev Lett. 2016;117:060504. https://doi.org/10.1103/PhysRevLett.117.060504.

Gaebler JP, Tan TR, Lin Y, Wan Y, Bowler R, Keith AC, Glancy S, Coakley K, Knill E, Leibfried D, Wineland DJ. High-fidelity universal gate set for \({^{9}\mathrm{Be}}^{+}\) ion qubits. Phys Rev Lett. 2016;117:060505. https://doi.org/10.1103/PhysRevLett.117.060505.

Schäfer V, Ballance C, Thirumalai K, Stephenson L, Ballance T, Steane A, Lucas D. Fast quantum logic gates with trapped-ion qubits. Nature. 2018;555(7694):75–8.

Clark CR, Tinkey HN, Sawyer BC, Meier AM, Burkhardt KA, Seck CM, Shappert CM, Guise ND, Volin CE, Fallek SD, Hayden HT, Rellergert WG, Brown KR. High-fidelity bell-state preparation with optical qubits. Phys Rev Lett 2021;127. https://doi.org/10.1103/PhysRevLett.127.130505.

Mintert F, Wunderlich C. Ion-trap quantum logic using long-wavelength radiation. Phys Rev Lett. 2001;87:257904. https://doi.org/10.1103/PhysRevLett.87.257904.

Weidt S, Randall J, Webster SC, Lake K, Webb AE, Cohen I, Navickas T, Lekitsch B, Retzker A, Hensinger WK. Trapped-ion quantum logic with global radiation fields. Phys Rev Lett 2016;117. https://doi.org/10.1103/PhysRevLett.117.220501.

Lekitsch B, Weidt S, Fowler AG, Mølmer K, Devitt SJ, Wunderlich C, Hensinger WK. Blueprint for a microwave trapped ion quantum computer. Sci Adv. 2017;3(2):1601540. https://doi.org/10.1126/sciadv.1601540.

Srinivas R, Burd S, Knaack H, Sutherland R, Kwiatkowski A, Glancy S, Knill E, Wineland D, Leibfried D, Wilson AC, et al.. High-fidelity laser-free universal control of trapped ion qubits. Nature. 2021;597(7875):209–13.

Ospelkaus C, Warring U, Colombe Y, Brown K, Amini J, Leibfried D, Wineland DJ. Microwave quantum logic gates for trapped ions. Nature. 2011;476(7359):181–4.

Harty TP, Sepiol MA, Allcock DTC, Ballance CJ, Tarlton JE, Lucas DM. High-fidelity trapped-ion quantum logic using near-field microwaves. Phys Rev Lett 2016;117. https://doi.org/10.1103/PhysRevLett.117.140501.

Hahn H, Zarantonello G, Schulte M, Bautista-Salvador A, Hammerer K, Ospelkaus C. Integrated 9be+ multi-qubit gate device for the ion-trap quantum computer. npj Quantum Inf 2019;5. https://doi.org/10.1038/s41534-019-0184-5.

Zarantonello G, Hahn H, Morgner J, Schulte M, Bautista-Salvador A, Werner RF, Hammerer K, Ospelkaus C. Robust and resource-efficient microwave near-field entangling be+ 9 gate. Phys Rev Lett 2019;123. https://doi.org/10.1103/PhysRevLett.123.260503.

Weber M, Gely M, Hanley R, Harty T, Leu A, Löschnauer C, Nadlinger D, Lucas D. Robust and fast microwave-driven quantum logic for trapped-ion qubits. 2024. ArXiv preprint. arXiv:2402.12955.

Löschnauer CM, Toba JM, Hughes AC, King SA, Weber MA, Srinivas R, Matt R, Nourshargh R, Allcock DTC, Ballance CJ, Matthiesen C, Malinowski M, Harty TP. Scalable, high-fidelity all-electronic control of trapped-ion qubits. 2024. https://arxiv.org/abs/2407.07694.

Harty TP, Allcock DTC, Ballance CJ, Guidoni L, Janacek HA, Linke NM, Stacey DN, Lucas DM. High-fidelity preparation, gates, memory, and readout of a trapped-ion quantum bit. Phys Rev Lett 2014;113. https://doi.org/10.1103/PhysRevLett.113.220501.

Leu AD, Gely MF, Weber MA, Smith MC, Nadlinger DP, Lucas DM. Fast, high-fidelity addressed single-qubit gates using efficient composite pulse sequences. Phys Rev Lett. 2023;131:120601. https://doi.org/10.1103/PhysRevLett.131.120601.

Weber MA, Löschnauer C, Wolf J, Gely MF, Hanley RK, Goodwin JF, Ballance CJ, Harty TP, Lucas DM. Cryogenic ion trap system for high-fidelity near-field microwave-driven quantum logic. Quantum Sci Technol. 2023;9(1):015007. https://doi.org/10.1088/2058-9565/acfba8.

Hahn H, Zarantonello G, Bautista-Salvador A, Wahnschaffe M, Kohnen M, Schoebel J, Schmidt PO, Ospelkaus C. Multilayer ion trap with three-dimensional microwave circuitry for scalable quantum logic applications. Appl Phys B 2019;125. https://doi.org/10.1007/s00340-019-7265-1.

Chiaverini J, Sage JM. Insensitivity of the rate of ion motional heating to trap-electrode material over a large temperature range. Phys Rev A 2014;89. https://doi.org/10.1103/PhysRevA.89.012318.

Brownnutt M, Kumph M, Rabl P, Blatt R. Ion-trap measurements of electric-field noise near surfaces. Rev Mod Phys 2015;87. https://doi.org/10.1103/RevModPhys.87.1419.

Valente-Feliciano AM. Superconducting RF materials other than bulk niobium: a review. Supercond Sci Technol. 2016. https://doi.org/10.1088/0953-2048/29/11/113002.

Padamsee H. 50 years of success for srf accelerators—a review. Supercond Sci Technol. 2017;30(5):053003. https://doi.org/10.1088/1361-6668/aa6376.

Gurevich A. Enhancement of rf breakdown field of superconductors by multilayer coating. Appl Phys Lett 2006;88. https://doi.org/10.1063/1.2162264.

Thomas CN, Withington S, Sun Z, Skyrme T, Goldie DJ. Nonlinear effects in superconducting thin film microwave resonators. New J Phys 2020;22. https://doi.org/10.1088/1367-2630/ab97e8.

Probst S, Song FB, Bushev PA, Ustinov AV, Weides M. Efficient and robust analysis of complex scattering data under noise in microwave resonators. Rev Sci Instrum 2015;86. https://doi.org/10.1063/1.4907935.

Niepce D, Burnett JJ, Latorre MG, Bylander J. Geometric scaling of two-level-system loss in superconducting resonators. Supercond Sci Technol 2020;33. https://doi.org/10.1088/1361-6668/ab6179.

Maxfield BW, McLean W. Superconducting penetration depth of niobium. Phys Rev. 1965;139(5A):1515.

Allcock DTC, Harty TP, Ballance CJ, Keitch BC, Linke NM, Stacey DN, Lucas DM. A microfabricated ion trap with integrated microwave circuitry. Appl Phys Lett 2013;102. https://doi.org/10.1063/1.4774299.

Hahn H, Zarantonello G, Bautista-Salvador A, Wahnschaffe M, Kohnen M, Schoebel J, Schmidt PO, Ospelkaus C. Multilayer ion trap with three-dimensional microwave circuitry for scalable quantum logic applications. Appl Phys B, Lasers Opt 2019;125. https://doi.org/10.1007/s00340-019-7265-1.

Pagano G, Hess PW, Kaplan HB, Tan WL, Richerme P, Becker P, Kyprianidis A, Zhang J, Birckelbaw E, Hernandez MR, Wu Y, Monroe C. Cryogenic trapped-ion system for large scale quantum simulation. Quantum Sci Technol. 2018;4(1):014004. https://doi.org/10.1088/2058-9565/aae0fe.

Dubielzig T, Halama S, Hahn H, Zarantonello G, Niemann M, Bautista-Salvador A, Ospelkaus C. Ultra-low-vibration closed-cycle cryogenic surface-electrode ion trap apparatus. Rev Sci Instrum. 2021;92(4):043201. https://doi.org/10.1063/5.0024423.

Wesenberg JH. Electrostatics of surface-electrode ion traps. Phys Rev A 2008;78. https://doi.org/10.1103/physreva.78.063410.

Leibfried D, Blatt R. Quantum dynamics of single trapped ions. 2003.

Visser PJD, Goldie DJ, Diener P, Withington S, Baselmans JJA, Klapwijk TM. Evidence of a nonequilibrium distribution of quasiparticles in the microwave response of a superconducting aluminum resonator. Phys Rev Lett 2014;112. https://doi.org/10.1103/PhysRevLett.112.047004.

Budoyo RP, Hertzberg JB, Ballard CJ, Voigt KD, Kim Z, Anderson JR, Lobb CJ, Wellstood FC. Effects of nonequilibrium quasiparticles in a thin-film superconducting microwave resonator under optical illumination. Phys Rev B 2016;93. https://doi.org/10.1103/PhysRevB.93.024514.

Fischer PB, Catelani G. Nonequilibrium quasiparticle distribution in superconducting resonators: an analytical approach. Phys Rev Appl 2023;19. https://doi.org/10.1103/PhysRevApplied.19.054087.

Kaplan SB, Chi CC, Langenberg DN, Chang JJ, Jafarey S, Scalapino DJ. Quasiparticle and phonon lifetimes in superconductors. Phys Rev B. 1976;14:4854–73. https://doi.org/10.1103/PhysRevB.14.4854.

Sørensen A, Mølmer K. Quantum computation with ions in thermal motion. Phys Rev Lett. 1999;82:1971–4. https://doi.org/10.1103/PhysRevLett.82.1971.

Kwon S, Roudsari AF, Benningshof OWB, Tang YC, Mohebbi HR, Taminiau IAJ, Langenberg D, Lee S, Nichols G, Cory DG, Miao GX. Magnetic field dependent microwave losses in superconducting niobium microstrip resonators. J Appl Phys 2018;124. https://doi.org/10.1063/1.5027003.

Wang Z, Balembois L, Rančić M, Billaud E, Dantec ML, Ferrier A, Goldner P, Bertaina S, Chanelière T, Esteve D, Vion D, Bertet P, Flurin E. Single-electron spin resonance detection by microwave photon counting. Nature. 2023;619:276–81. https://doi.org/10.1038/s41586-023-06097-2.

Zheng SB. Quantum-information processing and multiatom-entanglement engineering with a thermal cavity. Phys Rev A. 2002;66:4. https://doi.org/10.1103/PhysRevA.66.060303.

Solano E, Agarwal GS, Walther H. Strong-driving-assisted multipartite entanglement in cavity qed. Phys Rev Lett. 2003;90:4. https://doi.org/10.1103/PhysRevLett.90.027903.

Bermudez A, Schmidt PO, Plenio MB, Retzker A. Robust trapped-ion quantum logic gates by continuous dynamical decoupling. Phys Rev A 2012;85. https://doi.org/10.1103/PhysRevA.85.040302.

Tan TR, Gaebler JP, Bowler R, Lin Y, Jost JD, Leibfried D, Wineland DJ. Demonstration of a dressed-state phase gate for trapped ions. Phys Rev Lett 2013;110. https://doi.org/10.1103/PhysRevLett.110.263002.

Palmieri V. The Way of Thick Films toward a Flat Q-curve in Sputtered Cavities. In: Proc. of international conference on RF superconductivity (SRF’17). International conference on RF superconductivity. Lanzhou, China, July 17-21, 2017. Geneva: JACoW; 2018. p. 378–81. https://doi.org/10.18429/JACoW-SRF2017-TUYBA03. http://jacow.org/srf2017/papers/tuyba03.pdf.

Kubo T. Multilayer coating for higher accelerating fields in superconducting radio-frequency cavities: a review of theoretical aspects. Supercond Sci Technol. 2017. https://doi.org/10.1088/1361-6668/30/2/023001.

Antoine CZ, Villegier JC, Martinet G. Study of nanometric superconducting multilayers for rf field screening applications. Appl Phys Lett 2013;102. https://doi.org/10.1063/1.4794938.

Kielpinski D, Monroe C, Wineland DJ. Architecture for a large-scale ion-trap quantum computer. Nature. 2002;417:709–11. https://doi.org/10.1038/nature00784.

Pino JM, Dreiling JM, Figgatt C, Gaebler JP, Moses SA, Allman MS, Baldwin CH, Foss-Feig M, Hayes D, Mayer K, Ryan-Anderson C, Neyenhuis B. Demonstration of the trapped-ion quantum ccd computer architecture. Nature. 2021;592:209–13. https://doi.org/10.1038/s41586-021-03318-4.

Blakestad RB, Ospelkaus C, Vandevender AP, Amini JM, Britton J, Leibfried D, Wineland DJ. High-fidelity transport of trapped-ion qubits through an x-junction trap array. Phys Rev Lett 2009;102. https://doi.org/10.1103/PhysRevLett.102.153002.

Walther A, Ziesel F, Ruster T, Dawkins ST, Ott K, Hettrich M, Singer K, Schmidt-Kaler F, Poschinger U. Controlling fast transport of cold trapped ions. Phys Rev Lett 2012;109. https://doi.org/10.1103/PhysRevLett.109.080501.

Castellanos-Beltran MA, Lehnert KW. Widely tunable parametric amplifier based on a superconducting quantum interference device array resonator. Appl Phys Lett 2007;91. https://doi.org/10.1063/1.2773988.

Strickland WM, Elfeky BH, Yuan JOC, Schiela WF, Yu P, Langone D, Vavilov MG, Manucharyan VE, Shabani J. Superconducting resonators with voltage-controlled frequency and nonlinearity. Phys Rev Appl 2023;19. https://doi.org/10.1103/PhysRevApplied.19.034021.

Jiang J, Li Y, Pan J, Wang H, Sun G, Wu P. Mechanical oscillators based on superconducting membranes. In: 2019 IEEE international superconductive electronics conference (ISEC). 2019. p. 1–3. https://doi.org/10.1109/ISEC46533.2019.8990929.

Jiang J, Jiang J, Pan J, Pan J, Li Y, Li Y, Lu Y, Lu Y, Wei X, Wei X, Lu S, Lu S, Li Z, Li Z, Wang H, Wang H, Sun G, Sun G, Wu P, Wu P. Voltage-controlled mechanical oscillator based on superconducting membrane. IEEE Trans Appl Supercond. 2020;30:1–5. https://doi.org/10.1109/TASC.2020.2991809.

Warring U, Ospelkaus C, Colombe Y, Jördens R, Leibfried D, Wineland DJ. Individual-ion addressing with microwave field gradients. Phys Rev Lett 2013;110. https://doi.org/10.1103/PhysRevLett.110.173002.

Sutherland RT, Srinivas R, Burd SC, Leibfried D, Wilson AC, Wineland DJ, Allcock DTC, Slichter DH, Libby SB. Versatile laser-free trapped-ion entangling gates. New J Phys. 2019;21(3):033033. https://doi.org/10.1088/1367-2630/ab0be5.
