Characterizing the attenuation of coaxial and rectangular microwave-frequency waveguides at cryogenic temperatures

Abstract

Low-loss waveguides are required for quantum communication at distances beyond the chip-scale for any low-temperature solid-state implementation of quantum information processors. We measure and analyze the attenuation constant of commercially available microwave-frequency waveguides down to millikelvin temperatures and single photon levels. More specifically, we characterize the frequency-dependent loss of a range of coaxial and rectangular microwave waveguides down to \(0.005\ \mbox{dB}/\mbox{m}\) using a resonant-cavity technique. We study the loss tangent and relative permittivity of commonly used dielectric waveguide materials by measurements of the internal quality factors and their comparison with established loss models. The results of our characterization are relevant for accurately predicting the signal levels at the input of cryogenic devices, for reducing the loss in any detection chain, and for estimating the heat load induced by signal dissipation in cryogenic systems.

1 Introduction

Interconverting the quantum information stored in stationary qubits to photons and faithfully transmitting them are two basic requirements of any physical implementation of quantum computation [1]. Coherent interaction of solid-state and atomic quantum devices with microwave photons has been experimentally demonstrated for quantum dot systems [25], individual electron spin qubits [6], ensembles of electronic spins [7], superconducting circuits [810] and Rydberg atoms [1114].

In the field of circuit quantum electrodynamics, experiments show the ability to use single itinerant microwave photons [15, 16] or joint measurements [17] to generate entanglement between distant superconducting qubits [18]. In these probabilistic entanglement schemes the entanglement generation rate is inversely proportional to the signal loss between the two sites. Furthermore, entanglement can be generated deterministically by transmitting single microwave photons with symmetric temporal shape [19] which can be emitted [20, 21] and reabsorbed with high fidelity [22]. However, the fidelity of the entangled state is dependent on the signal loss for most protocols. Therefore, the ability to transmit microwave photons with low loss, which we address in this manuscript, is essential for the realization of quantum computation with solid-state and atomic quantum systems.

In addition, studying the reduction of loss of superconducting waveguides has the potential to contribute to improving the fidelity of qubit state measurements [1] by minimizing the loss of the signal between the read-out circuit and the first amplifier [23]. Knowing the loss of microwave waveguides also enables more accurate estimates of the signal levels at the input of cryogenic devices and could be used to better evaluate the heat load induced by signal dissipation.

Previous studies of the attenuation constant were performed for different types of superconducting coaxial cables down to \(4\ \mbox{K}\) by impedance matched measurements [2431]. In those works, the attenuation constant is typically evaluated from measurements of the transmission spectrum of the waveguide, which is subsequently corrected for the attenuation in the interconnecting cables from room temperature to the cold stage in a reference measurement. In these studies lengths of the low-loss superconducting waveguides between \(20\ \mbox{m}\) and \(400\ \mbox{m}\) were used for the measurements to be dominated by the device under test.

In this paper, we study the loss of coaxial cables and rectangular waveguides using a resonant-cavity technique from which we extract attenuation constants down to \(0.005\ \mbox{dB}/\mbox{m}\) accurately between room and cryogenic temperatures at the tens of millikelvin level. By utilizing higher-order modes of these resonators we measure the frequency dependence of the attenuation for a frequency range between 3.5 and \(12.8\ \mbox{GHz}\) at cryogenic temperatures only limited by the bandwidth of our detection chain. By comparing our data to loss models capturing this frequency range we extract the loss tangent and relative permittivity of the dielectric and an effective parameter characterizing the conductor loss.

We evaluate the attenuation constant of coaxial and rectangular waveguides made by a number of different manufacturers from a range of materials, see Table 1. We characterize \(2.2\ \mbox{mm}\) (\(0.085\ \mbox{in}\)) diameter coaxial cables with niobium-titanium (Nb-47 weight percent \((\mbox{wt}\%)\) Ti) or niobium outer and center conductors. For both cables the manufacturer Keycom Corporation [32] used a low density polytetrafluorethylen (ldPTFE) dielectric. We also measure an aluminum outer, silver plated copper wire (SPC)Footnote 1 center conductor coaxial cable with an ldPTFE dielectric and an outer diameter of \(3.6\ \mbox{mm}\) (\(0.141\ \mbox{in}\)) manufactured by Micro-Coax, Inc. [33]. As a reference, we analyze a standard copper outer, silver plated copper clad steel (SPCW)Footnote 2 center conductor coaxial cable with a solid PTFE (sPTFE) dielectric and an outer conductor diameter of \(2.2\ \mbox{mm}\) (\(0.085\ \mbox{in}\)) manufactured by Micro-Coax, Inc. [33]. We investigate rectangular waveguides of type WR90 by Electronic Industries Alliance (EIA) standard with inner dimensions of \(s_{1}=22.86\ \mbox{mm}\), \(s_{2}=10.16\ \mbox{mm}\) (\(s_{1}=0.900\ \mbox{in}\), \(s_{2}= 0.400\ \mbox{in}\)) with a recommended frequency band of 8.2 to \(12.4\ \mbox{GHz}\). Three different conductor materials are characterized: aluminum 6061 with chromate conversion coating per MIL-C-5541E, aluminum 6061 without further surface treatment and oxygen-free, high conductivity (OFHC) copper with tin (Sn \(\mbox{wt}\%>99.99\%\)) plating of thickness 5-10 μm on the inner surface. All three rectangular waveguides are manufactured by Penn Engineering Components, Inc. [34].

Table 1 Summary of waveguide and measurement parameters

2 Experimental setup

We construct resonators from coaxial cables and rectangular waveguides as shown in the photographs and schematics of Figure 1(a) and (b). For the coaxial cables we use sub-miniature version A (SMA) panel mount connectors and remove the outer conductor and dielectric material of the coaxial cable at both ends to realize a capacitive coupling between the center conductor of the cable and the connector. We choose a coupling capacitance to obtain largely undercoupled resonators (see Section 3 and Appendix 1 for details).

Figure 1
figure 1

Overview of the experimental setup. Photographs (a) and schematics (b) of a capacitively coupled coaxial cable and an aperture coupled rectangular waveguide. (c) Schematic of the room temperature setup using a vector network analyzer (VNA). A through-open-short-match (TOSM) calibration is used to account for loss and phase offsets in the interconnecting cables. (d) Schematic of the FPGA-based microwave setup [35] used for measurements at cryogenic temperatures.

At room temperature (RT) we use a vector network analyzer (VNA) and a through-open-short-match (TOSM) calibration to set the measurement reference plane to the input of the coupling ports of the waveguide according to the schematic presented in Figure 1(c) and adjust the input and output coupling to be approximately equal. For measurements at cryogenic temperatures the microwave signal propagates through a chain of attenuators of \(20\ \mbox{dB}\) each at the 4 K, the cold plate and the base temperature stages before entering the waveguide (Figure 1(d)). The output signal is routed through an isolator with a frequency range of 4-\(12\ \mbox{GHz}\) and an isolation larger than \(20\ \mbox{dB}\), a high-electron-mobility transistor (HEMT) amplifier with a bandwidth of 1-\(12\ \mbox{GHz}\), a gain of \(40\ \mbox{dB}\) and a noise temperature of \(5\ \mbox{K}\), as specified by the manufacturer. After room temperature amplification and demodulation, the signal is digitized and the amplitude is averaged using a field programmable gate array (FPGA) with a custom firmware.

The waveguides are characterized at a nominal temperature of \(4\ \mbox{K}\) (4K) using the pulse tube cooler of a cryogen-free dilution refrigerator system in which also the millikelvin temperature (BT) measurements are performed. We thermally anchor the waveguides to the base plate of the cryostat using OFHC copper braids and clamps. The actual waveguide temperatures are extracted in a measurement of the resistance of a calibrated ruthenium oxide (RuO) sensor mounted at the center of the coaxial cables or at the end of the rectangular waveguides and are listed in Table 1.

For the measurements at base temperature BT (\({\sim}10\ \mbox{mK}\)) it proved essential to carefully anchor all superconducting waveguide elements at multiple points to assure best possible thermalization. The measured temperatures listed in Table 1 are found to be significantly higher than the BT specified above. We attribute the incomplete thermalization of the superconducting waveguides to the small thermal conductivity of the employed materials below their critical temperature \(T_{\mathrm{c}}\) [36]. We note that when using only a minimal set of anchoring points, we observed even higher temperatures.

3 Measurements of the attenuation constant

3.1 Illustration of the measurement technique

To illustrate the resonant-cavity technique for extracting the attenuation constant of a waveguide we discuss a calibrated S-parameter measurement at RT for the coaxial line CC141Al (Table 1). The measured transmission spectrum \(\vert S_{21}(\nu) \vert ^{2}\) exemplifies the periodic structure of higher-order modes for mode numbers n between 5 and 109 (Figure 2). We extract the resonance frequency \(\nu_{\mathrm{n}}\) and the external and internal quality factor, \(Q_{\mathrm{e}}\) and \(Q_{\mathrm {i}}\), for each mode n by fitting the complex transmission coefficient of a weakly coupled parallel RLC circuit (see Appendix 2) to the data in a finite bandwidth around each \(\nu_{\mathrm {n}}\) (Figure 3). We observe a decreasing insertion loss on resonance \(\operatorname{IL}(\nu_{\mathrm{n}})=-10 \log_{10} \vert S_{21}(\nu_{\mathrm {n}}) \vert ^{2}\ \mbox{dB} \) (dashed line in Figure 2(a)) with increasing frequency due to the increase of the effective capacitive coupling strength. We chose \(\operatorname{IL}(\nu_{\mathrm{n}}) > 40\ \mbox{dB}\) to ensure the largely undercoupled regime (\(Q_{\mathrm{e}} \gg Q_{\mathrm{i}}\)) over the entire frequency range. In this regime, \(Q_{\mathrm{i}}\) is well approximated by the loaded quality factor \(Q_{\mathrm{l}}\) according to \(1/Q_{\mathrm{i}}=1/Q_{\mathrm{l}}-1/Q_{\mathrm{e}}\approx1/Q_{\mathrm{l}}\). In our experiments we assure that \(Q_{\mathrm{e}} > 10 Q_{\mathrm{i}}\) for all frequencies and temperatures.

Figure 2
figure 2

Exemplary waveguide resonator transmission spectra at room temperature. (a) Transmission coefficient \(\vert S_{21} \vert ^{2}\) versus frequency ν for CC141Al at RT. The dashed line indicates the frequency-dependent insertion loss on resonance \(IL(\nu_{\mathrm{n}})\). \(\vert S_{21} \vert ^{2}\) of (b) the first 6 measured modes and (c) 6 modes around \(8\ \mbox{GHz}\) as indicated by the dashed boxes in (a).

Figure 3
figure 3

Illustration of analysis procedure for representative modes. Absolute value squared of the measured transmission \(\vert S_{21} \vert ^{2}\) (dots) versus frequency ν at the indicated resonances for CC141Al (RT) and modes numbers \(n=\{26, 61, 90\}\). The arrows indicate the full width at half maximum from which we extracted \(Q_{\mathrm{i}}\). \(\nu_{\mathrm{res}}\) is the center frequency of the resonance. The line is the absolute value squared of the simultaneous fit of the real and imaginary part of the \(S_{21}\) scattering parameter (see Appendix 2 for details).

Under this condition it is sufficient to extract \(Q_{\mathrm{l}}\) for each mode n from

$$ \bigl\vert S_{21}(\nu) \bigr\vert =\frac{S^{\mathrm{max}}_{\mathrm{n}} }{\sqrt{1+4(\nu/\nu_{\mathrm {n}}-1)^{2} {Q_{\mathrm{l}}}^{2}}}+C_{1}+C_{2} \nu $$
(1)

neglecting the specific value of the insertion loss (\(S_{\mathrm{n}}^{\mathrm {max}}\) is a free scaling factor). \(C_{1}\), \(C_{2}\) account for a constant offset and a linear frequency dependence in the background [37] most relevant for measurements of low quality factors (<103) resonances.

3.2 Analysis of coaxial lines

To determine the frequency dependence of the attenuation constant \(\alpha(\nu)\) of the coaxial line we analyze its measured quality factors \(Q_{\mathrm{i}}\) in dependence on the mode number n. The fundamental frequency \(\nu_{0}\) of a low-loss transmission line resonator is given by

$$ \nu_{0}= \frac{c}{\sqrt{\epsilon_{\mathrm{r}}}}\frac{1}{2 l} $$
(2)

with the length of the resonator l, the relative permittivity of the dielectric \(\epsilon_{\mathrm{r}}\) and the speed of light in vacuum c. The internal quality factor \(Q_{\mathrm{i}}\) [38]

$$ Q_{\mathrm{i}}=\frac{n \pi}{2 l \alpha} $$
(3)

is inversely proportional to α

$$ \alpha=\alpha_{\mathrm{c}}+\alpha_{\mathrm{d}} =\frac{g_{\mathrm{c}}\sqrt{\epsilon_{\mathrm{r}}}}{2 \mu_{0} c} R_{\mathrm{s}}(\nu)+ \frac{\pi\sqrt{\epsilon_{\mathrm{r}}}}{c} \nu\ \operatorname{tan} \delta . $$
(4)

α can be written as a sum of conductor loss \(\alpha_{\mathrm{c}}\) and dielectric loss \(\alpha_{\mathrm{d}}\) with the vacuum permeability \(\mu _{0}\), a frequency dependent surface resistance \(R_{\mathrm{s}}(\nu)\), a geometric constant \(g_{\mathrm{c}}\) and the frequency independent loss tangent of the dielectric material tanδ. For a coaxial line \(g_{\mathrm{c}}\) is \((1/a+1/b)/\operatorname{ln}(b/a)\) with the radius of the center conductor a and the inner radius of the outer conductor b. To characterize the conductor loss of coaxial cables combining different materials for the center and outer conductors we introduce an effective surface resistance \(R_{\mathrm{s}}\) (see Appendix 3). Inserting Eq. (4) into Eq. (3) leads to

$$ Q_{\mathrm{i}}(\nu_{\mathrm{n}})=\frac{1}{\frac{g_{\mathrm{c}}}{2 \pi\mu_{0}}\frac {R_{\mathrm{s}}(\nu_{\mathrm{n}})}{\nu_{\mathrm{n}}}+\operatorname{tan} \delta}, $$
(5)

which is independent of \(\epsilon_{\mathrm{r}}\). Therefore, \(\epsilon_{\mathrm {r}}\) is extracted from the fundamental frequency of the resonator \(\nu _{0}\) and \(R_{\mathrm{s}}(\nu)\) and tanδ from measurements of \(Q_{\mathrm{i}}(\nu)\).

The surface resistance of a normal conductor \(R_{\mathrm{s}}^{\mathrm{nc}}(\nu )\) is proportional to \(\sqrt{\nu}\) and to the direct current (dc) conductivity \(1/\sqrt{\sigma}\) [38]. The theory of the high-frequency dissipation in superconductors [3942] shows a quadratic dependence of \(R_{\mathrm {s}}^{\mathrm{sc}}(\nu)\).

The measured external quality factors at RT (Figure 4(b) and Figure 5(b)) are in good agreement with the ones expected for a capacitively coupled transmission line [43]

$$ Q_{\mathrm{e}}(\nu_{\mathrm{n}})=\frac{C_{\mathrm{l}} l}{8 \pi C_{\mathrm{c}}^{2} R_{\mathrm {l}}}\frac{1}{\nu_{\mathrm{n}}}+ \frac{R_{\mathrm{l}} C_{\mathrm{l}} l \pi}{2} \nu _{\mathrm{n}} , $$
(6)

with the capacitance per unit length \(C_{\mathrm{l}}\), the real part of the load impedance \(R_{\mathrm{l}}\) and the coupling capacitance \(C_{\mathrm{c}}\) used as fit parameters. An interpolation of the \(Q_{\mathrm{e}}\) measurements is used in the 4K and BT measurements to estimate the average number of photons stored in the waveguide on resonance at each mode n (Table 1).

Figure 4
figure 4

Frequency and temperature dependence of quality factors of aluminum coaxial line CC141Al. (a) Measured internal (\(Q_{\mathrm{i}}\)) and (b) external quality factors (\(Q_{\mathrm{e}}\)) of coaxial line CC141Al versus frequency ν extracted from the spectra measured at RT (blue dots), at 4K (green dots) and BT (orange dots). The black lines are fits to the loss model discussed in the text.

Figure 5
figure 5

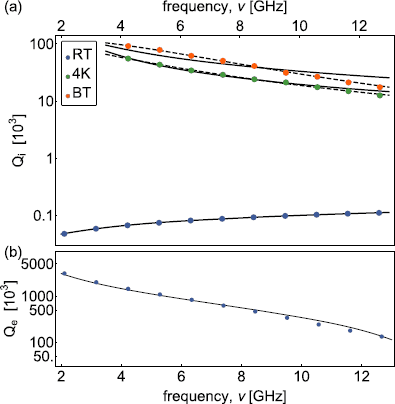

Frequency and temperature dependence of quality factors of niobium-titanium coaxial line CC085NbTi. (a) Measured (\(Q_{\mathrm{i}}\)) internal and (b) external quality factors (\(Q_{\mathrm{e}}\)) of coaxial line CC085NbTi versus frequency ν extracted from the spectra at RT (blue dots), at 4K (green dots) and BT (orange dots). The solid (dashed) black lines are fits to the loss model which assumes \(R_{\mathrm{s}}^{\mathrm{sc}}(\nu) \propto\nu^{2}\) \((R_{\mathrm {s}}^{\mathrm{sc}}(\nu) \propto\nu^{\mathrm{p}})\).

The frequency dependence of the measured quality factors for CC141Al presented in Figure 4(a) shows the expected \(\sqrt{\nu}\) dependence considering an effective conductivity of the outer and center conductor following the skin effect model of normal conductor. This suggests that \(\alpha_{\mathrm{c}}\) is mainly limited by the normal conducting SPC center conductor. The dielectric loss limit of \(Q_{\mathrm{i}}\) is determined to be approximately \(15 \times10^{3}\) at BT, see Table 2.

Table 2 Summary of the extracted relative permittivities \(\pmb{\epsilon _{\mathrm{r}}}\) and loss tangents tan δ of the tested dielectric materials

Following the same measurement procedure, we extract the quality factor of low-loss superconducting cables (e.g. see Figure 5 for CC085NbTi). The measured internal quality factors of CC085NbTi at the 4K and BT, ranging from \(12\times 10^{3}\) to \(92\times10^{3}\), decrease approximately \({\propto}\nu^{2}\) (solid line) with a small deviation at higher frequencies. We obtain a better fit assuming a power law dependence of \(R_{\mathrm{s}}^{\mathrm{sc}}(\nu) \propto\nu^{\mathrm{p}}\) with an exponent \(p \approx2.7 \pm0.3\) at 4K and \(p \approx3.4 \pm0.5\) at BT. This peculiar frequency dependence is not explained by the theory of high-frequency dissipation in superconductors [3942]. Measuring CC085Nb leads to similar results as for CC085NbTi (Figure 6). We also observe a power law dependence with \(p \approx3.2 \pm0.4\) and \(p \approx3.3\pm0.3\) at 4K and BT. Furthermore, we compare the dielectric and conductor properties of these low-loss coaxial cables with those of CC085Cu for which me measured attenuation ranging from \(0.30\ \mbox{dB}/\mbox{m}\) to \(0.75\ \mbox{dB}/\mbox{m}\) (Figure 6). In addition, we measured the attenuation constant of a stainless steel outer and center conductor coaxial cable (CC085SS) at RT, approximately \(77\ \mbox{K}\) (LN2) and \(4.2\ \mbox{K}\) (LHe) described in Appendix 4.

Figure 6
figure 6

Comparison of measured attenuation constants. Attenuation constant α (dots) extracted from measurements at frequency ν for CC085Cu, CC141Al, CC085NbTi, CC085Nb, WR90Alc, WR90Al and WR90CuSn. (a) shows the measurement results at approximately \(4\ \mbox{K}\) and (b) the measurement results at BT. The attenuation constant α is plotted in \(\mbox{dB}/\mbox{m}\) in a log-plot to cover the full range of measured losses. The solid lines are calculated from the fits to \(Q_{\mathrm{i}}\) measurements using the same model as for the data.

We extract the relative permittivities \(\epsilon_{\mathrm{r}}\) from Eq. (2) and the loss tangent tanδ from fitting Eq. (5) to the measured \(Q_{\mathrm{i}}(\nu)\) for each coaxial cable (Table 2). The values for the Micro-Coax ldPTFE are determined from CC141Al measurements, for the Micro-Coax sPTFE from CC085Cu and for the Keycom ldPTFE from CC085NbTi and CC085Nb measurements. We extract tanδ of the Keycom ldPTFE from the fit assuming \(R_{\mathrm{s}}^{\mathrm{sc}}(\nu) \propto\nu^{\mathrm{p}}\) at 4K and BT. Due to the low internal quality factors \(Q_{\mathrm{i}}<100\) limited by the low RT conductivity (measured \(\sigma\approx8\times 10^{5}\ \mbox{S}/\mbox{m}\) for NbTi and Nb) we are unable to extract these quantities at RT. At cryogenic temperature we observe that tanδ of the ldPTFE of Micro-Coax and Keycom differ by a factor of 10. \(\epsilon_{\mathrm{r}}\) is found to be 1.7 for ldPTFE and 2 for sPTFE and is nearly temperature independent.

3.3 Analysis of rectangular waveguides

We performed similar measurements with three different rectangular waveguides of type WR90 (see Table 1). We use an aperture coupling approach by installing two aluminum 1100 plates (thickness \(t_{\mathrm{a}}=3\ \mbox{mm}\)) at both ends with a circular aperture (radius \(r_{\mathrm{a}}=5.3\ \mbox{mm}\) for WR90Alc and \(r_{\mathrm {a}}=4.1\ \mbox{mm}\) for WR90Al and WR90CuSn) in the center (Figure 1) resulting in inductively coupled rectangular 3D cavities [44]. The coupling strength depends on \(r_{\mathrm {a}}\) and \(t_{\mathrm{a}}\) of the aperture plates. We perform finite element simulation to estimate the coupling (for details see Appendix 1) and determine the attenuation constant of the rectangular waveguides by a measurement of its internal quality factor. For rectangular waveguide cavities the frequencies of the transverse electric modes \(\mathrm{TE}_{10\mathrm{k}}\) are given by

$$ \nu_{\mathrm{k}}=\frac{c}{2}\sqrt{\frac{1}{s_{1}^{2}}+ \frac{k^{2}}{l^{2}}} $$
(7)

with length of the longer transverse dimension of the rectangular waveguide \(s_{1}\) and the length of the cavity l. The frequency dependent internal quality factor is [38]

$$ \begin{aligned}[b] &Q_{\mathrm{TE}_{10\mathrm{k}}}(\nu_{\mathrm{k}}) \\ &\quad =\frac{2 s_{1}^{3} s_{2} l \pi\mu_{0} \nu_{\mathrm{k}}^{3}}{R_{\mathrm{s}}(\nu_{\mathrm {k}})}\frac{1}{c^{2} s_{2} (l-s_{1})+2 s_{1}^{3}(2 s_{2}+l) \nu_{\mathrm{k}}^{2} } \end{aligned} $$
(8)

with the length of the shorter transverse dimension of the rectangular waveguide \(s_{2}\). Inverting Eq. (8) we extract the surface resistance \(R_{\mathrm{s}}(\nu_{\mathrm{k}})\) from a measurement of \(Q_{\mathrm{TE}_{10\mathrm{k}}}(\nu_{\mathrm{k}})\) which we use to calculate the attenuation constant of the \(\mathrm{TE}_{10}\) mode of a rectangular waveguide

$$ \alpha_{\mathrm{TE}_{10}}(\nu)= \frac{R_{\mathrm{s}}(\nu)}{s_{1}^{2} s_{2} \mu_{0} c}\frac{s_{2} c^{2}+2 s_{1}^{3} \nu ^{2}}{\nu\sqrt{4\nu^{2} s_{1}^{2}-c^{2}}} . $$
(9)

Using this model we extract the attenuation constant of the rectangular waveguides, ranging from \(0.06\ \mbox{dB}/\mbox{m}\) to \(0.17\ \mbox{dB}/\mbox{m}\) at 4K and \(0.007\ \mbox{dB}/\mbox{m}\) to \(0.02\ \mbox{dB}/\mbox{m}\) at BT, and determine the frequency dependence of the internal quality factor. For the rectangular waveguides in the normal state at 4K we find good agreement to the theoretical model by considering the normal state surface resistance \(R_{\mathrm{s}}^{\mathrm{nc}}(\nu) \propto\sqrt{\nu} \). At BT in the superconducting state a surface resistance \(R_{\mathrm{s}}^{\mathrm {sc}}(\nu) \propto\nu^{2}\) approximates the data (Figure 6). Note that, the frequency dependence cannot be extracted with high accuracy for superconducting rectangular waveguides, since \(\alpha_{\mathrm{TE}_{10}}(\nu)\) diverges towards the cutoff frequency \(\nu_{\mathrm{co}}=c/2s_{1}\).

4 Conclusions

We have presented measurements of the attenuation constant of commonly used, commercially available low-loss coaxial cables and rectangular waveguides down to millikelvin temperatures in a frequency range between 3.5 and \(12.8\ \mbox{GHz}\). We have performed measurements of attenuations constants down to \(0.005\ \mbox{dB}/\mbox{m}\) using a resonant-cavity technique at cryogenic temperatures. In this method, we employ weak couplings to the waveguides resulting in resonant standing waves and measure their quality factors. We have extracted the loss tangent and relative permittivity of different dielectric materials by comparing our measurement results to existing loss models. The frequency dependence of the internal quality factors of the normal conducting waveguides are well described by the loss model, while the tested CC085NbTi and CC085Nb show small deviations from the predictions for the high-frequency dissipation in superconductors [39, 40]. We have also studied the power dependence of the attenuation constant which we find to be independent of the input power in a range from −140 to \(-80\ \mbox{dBm}\) (see Appendix 5).

Our results indicate that transmitting signals on a single photon level is feasible within laboratory distances, e.g. 95% of the signal can be transmitted over distances of \(28\ \mbox{m}\) using commercial rectangular waveguides or \(8\ \mbox{m}\) using coaxial cables. Furthermore, we find no significant dependence of the attenuation constants on the ambient residual magnetic fields in measurements performed with and without cryoperm magnetic shielding (see Appendix 6).

Comparing our results to recent measurements of high quality 3D cavities [45] with quality factors up to \(7\times 10^{7}\) indicate that improving the surface treatment of rectangular waveguides may lead to a even lower attenuation constant of rectangular waveguides down to \({\sim}10^{-4}\ \mbox{dB}/\mbox{m}\). Furthermore, our measurements show that the loss tangent tanδ strongly dependents on the PTFE composite where \(\operatorname{tan}\ \delta{\sim} 2\times10^{-6}\) of PTFE have been reported at cryogenic temperatures [46, 47] about a factor of 4 lower than those measured here. This suggests that the loss of superconducting coaxial cables may also be further reduced.

Notes

  1. Per the standard specification for silver-coated soft or annealed copper wire (ASTM B-298).

  2. Per the standard specification for silver-coated, copper-clad steel wire (ASTM B-501).

References

  1. DiVincenzo DP. Fortschr Phys. 2000;48:771.

    Article  Google Scholar

  2. Petta JR, Johnson AC, Taylor JM, Laird EA, Yacoby A, Lukin MD, Marcus CM, Hanson MP, Gossard AC. Science. 2005;309:2180.

    Article  ADS  Google Scholar

  3. Frey T, Leek PJ, Beck M, Blais A, Ihn T, Ensslin K, Wallraff A. Phys Rev Lett. 2012;108:046807.

    Article  ADS  Google Scholar

  4. Maune BM, Borselli MG, Huang B, Ladd TD, Deelman PW, Holabird KS, Kiselev AA, Alvarado-Rodriguez I, Ross RS, Schmitz AE, Sokolich M, Watson CA, Gyure MF, Hunter AT. Nature. 2012;481:344.

    Article  ADS  Google Scholar

  5. Delbecq MR, Schmitt V, Parmentier FD, Roch N, Viennot JJ, Fève G, Huard B, Mora C, Cottet A, Kontos T. Phys Rev Lett. 2011;107:256804.

    Article  ADS  Google Scholar

  6. Pla JJ, Tan KY, Dehollain JP, Lim WH, Morton JJL, Jamieson DN, Dzurak AS, Morello A. Nature. 2012;489:541.

    Article  ADS  Google Scholar

  7. Kubo Y, Ong FR, Bertet P, Vion D, Jacques V, Zheng D, Dréau A, Roch J-F, Auffeves A, Jelezko F, Wrachtrup J, Barthe MF, Bergonzo P, Esteve D. Phys Rev Lett. 2010;105:140502.

    Article  ADS  Google Scholar

  8. Chiorescu I, Bertet P, Semba K, Nakamura Y, Harmans CJPM, Mooij JE. Nature. 2004;431:159.

    Article  ADS  Google Scholar

  9. Wallraff A, Schuster DI, Blais A, Frunzio L, Huang R-S, Majer J, Kumar S, Girvin SM, Schoelkopf RJ. Nature. 2004;431:162.

    Article  ADS  Google Scholar

  10. Devoret M, Schoelkopf RJ. Science. 2013;339:1169.

    Article  ADS  Google Scholar

  11. Hagley E, Maitra X, Nogues G, Wunderlich C, Brune M, Raimond JM, Haroche S. Phys Rev Lett. 1997;79:1.

    Article  ADS  Google Scholar

  12. Raimond JM, Brune M, Haroche S. Rev Mod Phys. 2001;73:565.

    Article  ADS  Google Scholar

  13. Haroche S, Raimond J-M. Exploring the quantum: atoms, cavities, and photons. New York: Oxford University Press; 2006.

    Book  MATH  Google Scholar

  14. Hogan SD, Agner JA, Merkt F, Thiele T, Filipp S, Wallraff A. Phys Rev Lett. 2012;108:063004.

    Article  ADS  Google Scholar

  15. Eichler C, Bozyigit D, Lang C, Steffen L, Fink J, Wallraff A. Phys Rev Lett. 2011;106:220503.

    Article  ADS  Google Scholar

  16. Eichler C, Lang C, Fink JM, Govenius J, Filipp S, Wallraff A. Phys Rev Lett. 2012;109:240501.

    Article  ADS  Google Scholar

  17. Roch N, Schwartz ME, Motzoi F, Macklin C, Vijay R, Eddins AW, Korotkov AN, Whaley KB, Sarovar M, Siddiqi I. Phys Rev Lett. 2014;112:170501.

    Article  ADS  Google Scholar

  18. Narla A, Shankar S, Hatridge M, Leghtas Z, Sliwa KM, Zalys-Geller E, Mundhada SO, Pfaff W, Frunzio L, Schoelkopf RJ, Devoret MH. Phys Rev X. 2016;6:031036.

    Google Scholar

  19. Cirac JI, Zoller P, Kimble HJ, Mabuchi H. Phys Rev Lett. 1997;78:3221.

    Article  ADS  Google Scholar

  20. Pechal M, Huthmacher L, Eichler C, Zeytinoğlu S, Abdumalikov A Jr., Berger S, Wallraff A, Filipp S. Phys Rev X. 2014;4:041010.

    Google Scholar

  21. Zeytinoglu S, Pechal M, Berger S, Abdumalikov AA Jr., Wallraff A, Filipp S. Phys Rev A. 2015;91:043846.

    Article  ADS  Google Scholar

  22. Wenner J, Yin Y, Chen Y, Barends R, Chiaro B, Jeffrey E, Kelly J, Megrant A, Mutus J, Neill C, O’Malley P, Roushan P, Sank D, Vainsencher A, White T, Korotkov AN, Cleland A, Martinis JM. Phys Rev Lett. 2014;112:210501.

    Article  ADS  Google Scholar

  23. Macklin C, O’Brien K, Hover D, Schwartz ME, Bolkhovsky V, Zhang X, Oliver WD, Siddiqi I. Science. 2015;350:307. http://www.sciencemag.org/content/350/6258/307.full.pdf.

    Article  ADS  Google Scholar

  24. McCaa WD, Nahman NS. J Appl Phys. 1969;40:2098.

    Article  ADS  Google Scholar

  25. Ekstrom MP, McCaa WD, Nahman NS. IEEE Trans Nucl Sci. 1971;18:18.

    Article  ADS  Google Scholar

  26. Chiba N, Kashiwayanagi Y, Mikoshiba K. Proc IEEE. 1973;61:124.

    Article  Google Scholar

  27. Giordano S, Hahn H, Halama H, Luhman T, Bauer W. IEEE Trans Magn. 1975;11:437.

    Article  ADS  Google Scholar

  28. Mazuer J. Cryogenics. 1978;18:39.

    Article  ADS  Google Scholar

  29. Peterson GE, Stawicki RP. J Am Ceram Soc. 1989;72:704.

    Article  Google Scholar

  30. Kushino A, Kasai S, Kohjiro S, Shiki S, Ohkubo M. J Low Temp Phys. 2008;151:650.

    Article  ADS  Google Scholar

  31. Kushino A, Teranishi Y, Kasai S. J Supercond Nov Magn. 2013;26:2085.

    Article  Google Scholar

  32. Keycom characteristic technologies. 2016. Accessed: 2016-05-18.

  33. Cable manufacturers, cable assemblies - micro-coax, inc. 2016. Accessed: 2016-05-18

  34. Penn engineering components: waveguide specialists. 2016. Accessed: 2016-05-18

  35. Lang C. Quantum microwave radiation and its interference characterized by correlation function measurements in circuit quantum electrodynamics [Ph.D. thesis]. Zurich: ETH; 2014.

  36. Pobell F. Matter and methods at low temperatures. 3rd ed. Berlin: Springer; 2006.

    Google Scholar

  37. Petersan PJ, Anlage SM. J Appl Phys. 1998;84:3392.

    Article  ADS  Google Scholar

  38. Pozar DM. Microwave engineering. Hoboken: Wiley; 2012.

    Google Scholar

  39. Tinkham M. Introduction to superconductivity. 2nd ed. Mineola: Dover; 2004.

    Google Scholar

  40. Mattis DC, Bardeen J. Phys Rev. 1958;111:412.

    Article  ADS  Google Scholar

  41. Kose V. Superconducting quantum electronics. Berlin: Springer; 1989.

    Book  Google Scholar

  42. Gao J. The physics of superconducting microwave resonators [Ph.D. thesis]. California Institute of Technology; 2008.

  43. Göppl M, Fragner A, Baur M, Bianchetti R, Filipp S, Fink JM, Leek PJ, Puebla G, Steffen L, Wallraff A. J Appl Phys. 2008;104:113904.

    Article  ADS  Google Scholar

  44. Collin R. Field theory of guided waves. New York: IEEE Press; 1991.

    MATH  Google Scholar

  45. Reagor M, Paik H, Catelani G, Sun L, Axline C, Holland E, Pop IM, Masluk NA, Brecht T, Frunzio L, Devoret MH, Glazman LI, Schoelkopf RJ. Appl Phys Lett. 2013;102:192604.

    Article  ADS  Google Scholar

  46. Geyer RG, Krupka J. IEEE Trans Instrum Meas. 1995;44:329.

    Article  Google Scholar

  47. Jacob MV, Mazierska J, Leong K, Krupka J. IEEE Trans Microw Theory Tech. 2002;50:474.

    Article  ADS  Google Scholar

  48. COMSOL4.3. Comsol multiphysics® v. 4.3, 2012.

  49. Leong K, Mazierska J. IEEE Trans Microw Theory Tech. 2002;50:2115.

    Article  ADS  Google Scholar

  50. Probst S, Song FB, Bushev PA, Ustinov AV, Weides M. Rev Sci Instrum. 2015;86:024706.

    Article  ADS  Google Scholar

  51. Martinis JM, Cooper KB, McDermott R, Steffen M, Ansmann M, Osborn KD, Cicak K, Oh S, Pappas DP, Simmonds RW, Yu CC. Phys Rev Lett. 2005;95:210503.

    Article  ADS  Google Scholar

  52. Goetz J, Deppe F, Haeberlein M, Wulschner F, Zollitsch CW, Meier S, Fischer M, Eder P, Xie E, Fedorov KG, Menzel EP, Marx A, Gross R. J Appl Phys. 2016;119:015304. doi:10.1063/1.4939299.

    Article  ADS  Google Scholar

  53. Von Schickfus M, Hunklinger S. Phys Lett A. 1977;64:144.

    Article  ADS  Google Scholar

  54. Lindström T, Healey JE, Colclough MS, Muirhead CM, Tzalenchuk AY. Phys Rev B. 2009;80:132501.

    Article  ADS  Google Scholar

Download references

Acknowledgements

The authors thank Tobias Frey, Silvia Ruffieux and Maud Barthélemy for their contributions to the measurements, Oscar Akerlund for his support with the numerical integration, Christopher Eichler for discussing the manuscript and Keycom Corporation for providing superconducting coaxial cables. This work is supported by the European Research Council (ERC) through the “Superconducting Quantum Networks” (SuperQuNet) project, by National Centre of Competence in Research “Quantum Science and Technology” (NCCR QSIT), a research instrument of the Swiss National Science Foundation (SNSF), by the Office of the Director of National Intelligence (ODNI), Intelligence Advanced Research Projects Activity (IARPA), via the U.S. Army Research Office grant W911NF-16-1-0071 and by ETH Zurich. The views and conclusions contained herein are those of the authors and should not be interpreted as necessarily representing the official policies or endorsements, either expressed or implied, of the ODNI, IARPA, or the U.S. Government. The U.S. Government is authorized to reproduce and distribute reprints for Governmental purposes notwithstanding any copyright annotation thereon.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Philipp Kurpiers.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

The design of the experiment was developed by PK and AW. The experiments were performed by PK, TW and PM. The data was analyzed and interpreted by PK, TW and YS. The FPGA firmware was implemented and its operation overseen by YS. The manuscript was written by PK and AW. All authors commented on the manuscript. The project was led by AW. All authors have read and approved the final manuscript.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendices

Appendix 1: Characterization of the input/output coupling

We extract the coupling capacitance \(C_{\mathrm{c}}\) between the input coupler and the center conductor of the coaxial line CC085Cu from a fit of the measured transmission spectrum to an ABCD transmission matrix model. We find \(C_{\mathrm{c}}\) to decrease exponentially with the separation \(d_{\mathrm{c}}\), see Figure 1 and solid line in Figure 7(a).

Figure 7
figure 7

Extraction of coupling strengths for coaxial and waveguide resonators. (a) Coupling capacitance \(C_{{c}}\) (dots) obtained from an ABCD transmission matrix model fit to the measured spectrum versus the distance \(d_{{c}}\) between the center conductors of CC085Cu. The solid line is an exponential fit to the data. (b) Measured \(Q_{\mathrm{e}}\) of the \(\mathrm{TE}_{101}\) mode of a 3D cavity aperture coupled to a rectangular waveguide. The solid line is obtained from a finite element simulation.

We determine the external quality factor \(Q_{\mathrm{e}}\) of an aperture coupled 3D cavity with resonance frequency \(\nu_{101}=8.690\ \mbox{GHz}\) in dependence on the coupling wall thickness \(t_{\mathrm{a}}\) and the radius of the circular aperture \(r_{\mathrm{a}}\) (Figure 1). We find good agreement between the measured \(Q_{\mathrm{e}}\) and the one extracted from finite-element simulations [48], Figure 7(b).

By changing the geometry of the described couplers, the coupling of both coaxial cables and rectangular waveguides can be tuned by orders of magnitude which is sufficient to fulfill the condition \(Q_{\mathrm {e}}\gg Q_{\mathrm{i}}\) to extract \(Q_{\mathrm{i}}\) precisely.

Appendix 2: Weakly coupled parallel RLC circuit

To extract the resonance frequency \(\nu_{\mathrm{n}}\) and the external and internal quality factor, \(Q_{\mathrm{e}}\) and \(Q_{\mathrm{i}}\), of the investigated devices we simultaneously fit the real and imaginary part of the complex transmission coefficient

$$ S_{21}(\nu)= \biggl(\frac{1}{1+Q_{\mathrm{e}}/Q_{\mathrm{i}}+2 i Q_{\mathrm{e}}(\nu/\nu _{\mathrm{n}}-1)}+X \biggr) e^{i \phi} $$
(10)

of a weakly coupled parallel RLC circuit [37]. Here X is a complex constant which accounts for impedance mismatches in the SMA panel mount connectors and \(e^{i \phi}\) is a rotation of the data relative to the measurement plane [49, 50].

Appendix 3: Attenuation constant of low-loss coaxial cables

We state the derivation of the attenuation constant of a low-loss transmission line based on Ref. [38]. The equivalent circuit parameters (self-inductance per unit length \(L_{\mathrm {l}}\), capacitance per unit length \(C_{\mathrm{l}}\), series resistance per unit length \(R_{\mathrm{l}}\) and shunt conductance per unit length \(G_{\mathrm {l}}\)) can be derived from the electric and magnetic field of the transmission line

$$\begin{aligned} \begin{aligned} &L_{\mathrm{l}}=\frac{\mu}{2\pi}\ln b/a, \\ &C_{\mathrm{l}}=\frac{2 \pi\epsilon_{\mathrm{0}} \epsilon_{\mathrm{r}}}{\ln b/a}, \\ &R_{\mathrm{l}}=\frac{1}{2\pi} \biggl(\frac{R^{\mathrm{a}}_{\mathrm{s}}}{a}+\frac{R^{\mathrm {b}}_{\mathrm{s}}}{b} \biggr), \\ &G_{\mathrm{l}}=\frac{2\pi\omega\epsilon_{\mathrm{0}} \epsilon_{\mathrm{r}}\ \operatorname {tan} \delta}{\ln b/a}. \end{aligned} \end{aligned}$$
(11)

The complex propagation constant

$$ \gamma=\alpha+ i \beta=\sqrt{(R_{\mathrm{l}}+ i \omega L_{\mathrm{l}}) (G_{\mathrm {l}}+i \omega C_{\mathrm{l}})} $$
(12)

can be approximated for small conductor \(R_{\mathrm{l}} \ll\omega L_{\mathrm {l}}\) and dielectric loss \(G_{\mathrm{l}} \ll\omega C_{\mathrm{l}}\) by

$$ \gamma\approx i \omega\sqrt{L_{\mathrm{l}}C_{\mathrm{l}}} \biggl(1- \frac{i}{2} \biggl(\frac {R_{\mathrm{l}}}{Z_{\mathrm{0}}}+G_{\mathrm{l}} Z_{\mathrm{0}} \biggr) \biggr) $$
(13)

with the characteristic impedance of the line \(Z_{\mathrm{0}}=\sqrt{L_{\mathrm {l}}/C_{\mathrm{l}}}\), so that

$$\begin{aligned} &\beta=\omega\sqrt{L_{\mathrm{l}}C_{\mathrm{l}}}=\frac{\omega\sqrt{\epsilon _{\mathrm{r}}}}{c}, \end{aligned}$$
(14)
$$\begin{aligned} &\alpha=\frac{1}{2} \biggl(\frac{R_{\mathrm{l}}}{Z_{\mathrm{0}}}+G_{\mathrm{l}} Z_{\mathrm {0}} \biggr) \\ &\quad =\frac{\sqrt{\epsilon_{\mathrm{r}}}}{2 c \ln b/a} \biggl(\frac{R^{\mathrm{a}}_{\mathrm {s}}}{a}+\frac{R^{\mathrm{b}}_{\mathrm{s}}}{b} \biggr)+ \frac{\pi\nu\sqrt{\epsilon _{\mathrm{r}}}}{c}\ \operatorname{tan} \delta \\ &\quad =\frac{R_{\mathrm{s}}\sqrt{\epsilon_{\mathrm{r}}}}{2 c \ln b/a} \biggl(\frac{1}{a}+\frac {1}{b} \biggr)+ \frac{\pi\nu\sqrt{\epsilon_{\mathrm{r}}}}{c}\ \operatorname{tan} \delta. \end{aligned}$$
(15)

In the last step we introduced an effective surface resistance \(R_{\mathrm {s}}=R^{\mathrm{a}}_{\mathrm{s}}=R^{\mathrm{b}}_{\mathrm{s}}\) to characterize the conductor loss. This is necessary, since we cannot distinguish the contributions of the different materials of the center and outer conductors to the total conductor loss in our data.

Appendix 4: Attenuation constant of CC085SS

We evaluate the loss of a \(2.2\ \mbox{mm}\) (\(0.085\ \mbox{in}\)) diameter stainless steel outer and center conductor coaxial cable (CC085SS) typically used in cryogenic applications where loss is of little concern, i.e. in input drive lines. At RT, approximately \(77\ \mbox{K}\) (LN2) and \(4.2\ \mbox{K}\) (LHe), the cable manufactured by Micro-Coax, Inc. [33] shows the expected frequency dependent attenuation \(\propto\sqrt{\nu}\) of a normal conductor decreasing with temperature (Figure 8). For example, we extract attenuation constants at \(6\ \mbox{GHz}\) of \(9.7\ \mbox{dBm/m}\) (RT), \(8.7\ \mbox{dBm/m}\) (LN2) and \(8.2\ \mbox{dBm/m}\) (LHe).

Figure 8
figure 8

Frequency and temperature dependence of attenuation constant of stainless steel coaxial line CC085SS. Measured attenuation constant α (dots) versus frequency ν for a CC085SS at RT, approximately \(77\ \mbox{K}\) (LN2), \(4\ \mbox{K}\) (LHe). The black lines are calculated from fits to the measured \(Q_{\mathrm {i}}\) using the model of Eq. (5) as described in the main text.

Appendix 5: Power dependence of the attenuation constant

We find the measured attenuation constant of CC085NbTi to be independent of the input power in a range from −140 to \(-80\ \mbox{dBm}\) corresponding to an average photon number on resonance inside the resonator of 105 to 0.2 and an average resonator voltage \(\langle V^{2} \rangle^{1/2}\) of approximately 10−6 to \(10^{-4}\ \mbox{V}\) (Figure 9). Our voltage range is comparable to that of Ref. [51] in which a clear power dependence for SiO2 and \(\mathrm{Si}\mbox{N}_{\mathrm{x}}\) dielectric materials is observed and explained by the loss due to the coupling of microscopic two level systems (TLS) to the electromagnetic field within the resonator [52]

$$ \delta_{\mathrm{TLS}}(P_{\mathrm{r}})=\frac{\delta_{\mathrm{TLS}}^{0}}{\sqrt{1+P_{\mathrm {r}}/P_{\mathrm{c}}}} $$
(16)

with the low power TLS loss \(\delta_{\mathrm{TLS}}^{0}\) and a characteristic power \(P_{\mathrm{c}}\) depending on the dielectric material. Following this model we conclude that the field inside the dielectric material of the coaxial cable (ldPTFE) does not saturate the individual TLS in the measured power range [53, 54], since no power dependence of the attenuation of the coaxial cable is observed.

Figure 9
figure 9

Power dependence of the attenuation constant of niobium-titanium coaxial line CC085NbTi. Attenuation constant α (dots) versus input power at the waveguide \(P_{\mathrm{in}}\) measured for frequencies between \(4.2\ \mbox{GHz}\) and \(12.7\ \mbox{GHz}\). The top axis indicates the average number of photons on resonance .

Appendix 6: Dependence on ambient magnetic field

We compare the extracted attenuation constants of CC085NbTi cables within (length 110 mm) and without (length 810 mm) a cryoperm magnetic shield and find no significant effect at 4K and BT (Figure 10). Since we expect the internal loss to be the sum of the individual loss contributions we argue that the measured attenuation constants are not limited by an ambient magnetic field which is believed to be dominated by the isolators installed at the BT stage of the used dilution refrigerator system.

Figure 10
figure 10

Attenuation constants extracted with and without magnetic shielding. Comparison of the attenuation constants measured at 4K and BT with and without cryoperm magnetic shielding for CC085NbTi. The solid lines are extracted from fits to the measured quality factors according to the model of Eq. (5).

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Kurpiers, P., Walter, T., Magnard, P. et al. Characterizing the attenuation of coaxial and rectangular microwave-frequency waveguides at cryogenic temperatures. EPJ Quantum Technol. 4, 8 (2017). https://doi.org/10.1140/epjqt/s40507-017-0059-7

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1140/epjqt/s40507-017-0059-7

Keywords
